Shenzhen Hyking Industry Limited
China Manufacturer with main products: DVR, DVR Cards, PTZ, CCTV Camera |

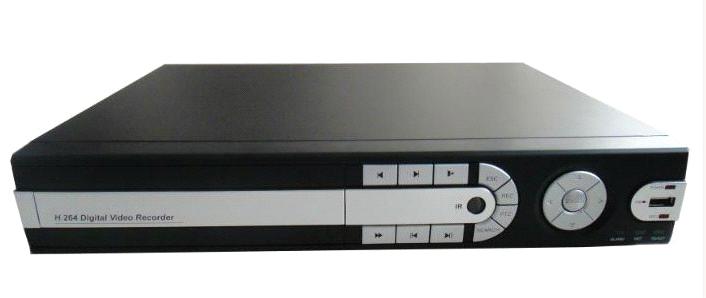

cheapest h.264 network dvr 16 channel dvr vehicle blackbox dvr: HK-S3216F
| FOB Price: | 112.00 - 117.00 USD/Set |
|---|---|
| Shipping: | 3-5 working days |
| Payment Terms: | T/T, Paypal, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | OEM, Neutral Packing |
Specifications
16 chs cheapest h.264 network dvr 16 channel dvr vehicle blackbox dvr: HK-S3216F
Features:
(1) H.264 real-time high compression, support dual stream network transmission.
(2) Support Wifi & Wireless 3G USB Modem(HK-S3104F/HK-S3108F only)
(3) Support Multi-language: English,Chinese Simplified,Chinese Traditional,Italian,Spanish,Japanese,Russian,French, German,Portuguese,Turkish,Polish,Hungarian,Finnish,Persian,Thai,Greek,Vietnamese, Romanian,Brazilian,Swedish,Arabic,Bahasa Indonesia,Hebrew,Ukrainian.
(4) New standard for professional DVR with high performance and competitive price.
(5) Support 3G Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android &BlackBerry.
(6) Realtime live display up to 4/8/16 camera with 720P high definition.
(7) 1,2,4,8,16 channel simultaneous realtime playback
(8) Support VGA and CVBS(TV) simultaneous output.
(9) Support remote IE, Netview, CMS, OSD live preview, settings, backup or playback.
(10) Multiple function: Live, Recording, Playback, Backup & Remote access.
(11) Support CIF realtime recording, support HD1,D1 non realtime.
Spcifications:
|
Model/Item
|
HK-S3216F
|
|
Compression Format
|
H.264
|
|
Operating system
|
Embedded LINUX
|
|
System Resources
|
Pentaplex function: live, recording, playback, backup & remote access
|
|
Video Input
|
BNC x 16
1.0VP-P,75Ω |
|
Video Output
|
2CH BNC TV-OUT,Support VGA and BNC simultaneous output
|
|
Main Stream Record Speed
|
CIF:400(P)
480(N)fps |
|
Extra Stream Speed
|
QCIF(1~25/30fps)
|
|
Recording Mode
|
Manual / Timer / Motion
|
|
Audio Input/Output
|
4CH RCA / 1CH RCA
|
|
Hard Disk Storage
|
2 SATA port, Max 4TB HDD supported or 1 SATA port with DVD RW
|
|
Alarm Input/Output
|
4 Channels(option)
|
|
Multiplex Operation
|
Live display / record / playback / backup / network operations
|
|
Backup Device
|
USB 2.0 flash drive / USB moving Hard disk / Network/DVD RW
|
|
Pre-alarm Recording
|
recording for 5 seconds before alarming
|
|
Network Protocol
|
TCP/IP,UDP,DHCP,IP Filter,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,Alarm Server,ARSP,Wifi,3G
|
|
Ethernet
|
10/100 Base-T. Supports remote control and live view via Ethernet
|
|
Web Interface
|
Internet Explorer (5 users access simultaneously)
Operating System: Windows Vista / XP / 2000 |
|
VGA Interface
|
Built-in
|
|
IR Remote Control
|
YES (IR receiver built-in)
|
|
Mobile Phone
|
Support Symbian, Windows CE, iPhone, Google Android and BlackBerry.
|
|
PTZ Control
|
YES
|
|
USB Mouse
|
YES
|
|
Power Source
|
12V DC(¡À10%)
|
|
Key Lock (Password Protection)
|
YES
|
|
System Recovery
|
System auto recovery after power failure
|
|
Dimensions (mm)
|
1.5U,
355*255*60 |
|
Working Temperature
|
-10~+55 degree
|
|
Working Humidity
|
10%- 90%
|
|
Weight
|
3.5 KG(No HDD)
|
Connections:
Application:
Support IE browser monitoring,Netview Client and CMS Software for multiple DVR from different places up to 255 IP simultaneously ,but at most up to 64ch windows display simultaneously, per screen can monitoring and playback from multiple DVR images, thorough solve most of the DVR can only manage a single DVR,as well as monitoring and playback can not be a problem at the same time.
CMS Manager Software
1) Display all added device
2)PTZ: Zoom,Focus,Iris,AutoPa,Preset,Tour
3)Color:Brightness,Contrast,Saturation and Hue adjust.
4)Monitor:Live display status
5)System Device Manager:Local Config ,Remote Config ,Account ,Local Log
6)Record: Playback recording file including Local playback and remote playback.
7)split switching
2)PTZ: Zoom,Focus,Iris,AutoPa,Preset,Tour
3)Color:Brightness,Contrast,Saturation and Hue adjust.
4)Monitor:Live display status
5)System Device Manager:Local Config ,Remote Config ,Account ,Local Log
6)Record: Playback recording file including Local playback and remote playback.
7)split switching
