Henan Shaolin Heavy Machinery Co., Ltd.
China Manufacturer with main products: Jaw Crusher, Ball Mill, Mobile Crusher Plant, Grinder mill, impact crusher, spring cone crusher, vibrating screen, stone crusher |

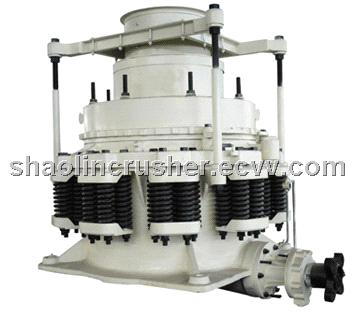

PY series spring cone crusher
| FOB Price: | 18,300.00 - 21,800.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | FOB Port Tianjin/Qingdao |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | export packing |
Specifications
Spring Cone Crusher :
Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness,and cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher.The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make surereliable performance. The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Working Principle of Cone Crusher:
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts.The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the diacharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequantly the output size is determined.
The series of crushers is widely applied in metallurgy, construction, road-building, chemical and sillcate industry. They are suitable for crushing mid-hard above mid-hold ores and rocks and posses the advantages of reliable construction,high productivity,easy adjustment and low operation cost. This series of crushers is divided into three kinds: primary crusher(PYB), secondary crusher(PYZ) and tertiary crusher (PYD).
Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness,and cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher.The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make surereliable performance. The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Working Principle of Cone Crusher:
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts.The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the diacharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequantly the output size is determined.
The series of crushers is widely applied in metallurgy, construction, road-building, chemical and sillcate industry. They are suitable for crushing mid-hard above mid-hold ores and rocks and posses the advantages of reliable construction,high productivity,easy adjustment and low operation cost. This series of crushers is divided into three kinds: primary crusher(PYB), secondary crusher(PYZ) and tertiary crusher (PYD).
|
Type
|
Max. input (mm)
|
Adjusting range of output (mm)
|
Capacity (t/h)
|
Motor power (kW)
|
weight (t)
|
Overall dimensions (L×W×H)(mm)
|
||||||
|
PYB
|
600
|
65
|
12-25
|
12-25
|
30
|
5
|
2800×1300×1700
|
|||||
|
PYD
|
35
|
3-15
|
5-23
|
5.5
|
||||||||
|
PYB
|
900
|
115
|
15-50
|
50-90
|
55
|
10.2
|
3050×1640×2350
|
|||||
|
PYZ
|
60
|
5-20
|
20-65
|
10.2
|
||||||||
|
PYD
|
40
|
3-13
|
15-50
|
10.3
|
||||||||
|
PYB
|
1200
|
145
|
20-50
|
110-200
|
110
|
24.7
|
4152×2300×2980
|
|||||
|
PYZ
|
100
|
8-26
|
50-150
|
25
|
||||||||
|
PYD
|
50
|
3-15
|
18-105
|
25.6
|
||||||||
|
PYB
|
1750
|
215
|
25-60
|
280-480
|
160
|
50.3
|
4870×3800×4192
|
|||||
|
PYZ
|
185
|
10-30
|
115-320
|
50.3
|
||||||||
|
PYD
|
85
|
5-15
|
75-230
|
50.4
|
||||||||
|
PYB
|
2200
|
300
|
30-60
|
590-1000
|
260-280
|
80
|
7705×3430×4852
|
|||||
|
PYZ
|
230
|
10-30
|
200-580
|
80
|
||||||||
|
PYD
|
100
|
5-15
|
120-340
|
81.4
|
||||||||
