Home  >Products Catalog > Thermostat > Electric Oven Capillary Thermostat with UL,CE Certificate

Electric Oven Capillary Thermostat with UL,CE Certificate SafeBuy Supplier Member

Supply Ability: 500,000 Piece/Pieces per Month
Shipping: 20days after remittance received.
Payment Terms: T/T, Western Union
Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Mid East
Place of Origin: Guangdong in China
Packaging Details: According to client's demand

Quick Details

  • Theory: Current Sensor
  • Usage: Temperature Sensor
  • Model Number: WKB
  • Brand Name: Thermal Internatioal
  • UL, CE, ROHS: 16A, 20A, 25A

Specifications

Electric Oven Capillary Thermostat with UL, CE Certificate
Details

Type
Electric Deep Fryer Parts
Place of Origin
Guangdong, China (Mainland)
Brand Name
Thermal International
Model Number
WKB
Certificate
UL, CE, RoHS, CQC, ISO9001
Temperature Range
30 to 185 degree Celsius
Temperature Differential
5% of action temperature
Electric Rating
16(3)A-250V~10(1.8)A-400V
Wiring Diagram
SPST and SPDT optional
Reset Type
Auto-reset
Material of Capillary and Sensing Bulb
Stainless Steel
Temperature's Rate of Change
1°C/min
Life
100,000 cycles
Application
Deep Fryer
Payment & Shipping Terms:
Minimum Order Quantity:
1000 Piece/Pieces Negotiable for less than MOQ
Port:
Shenzhen, China
Packaging Details:
Standard: Carton Boxes. 100 pieces/small carton (37cm*21cm*23cm); 200 pieces/large carton (44.5cm*38.5cm*26cm) Nonstandard package is available
Delivery Time:
Within 20-30 days after receipt of deposit
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
250000 Piece/Pieces per Month
Detailed Product Description
1. Electric Deep Fryer Thermostat
2. Temp: 30degree-185degree
3. Rate: 250V 16A
4. Life: 100000 cycles
5. UL, CE, RoHS, CQC Deep Fryer Thermostat

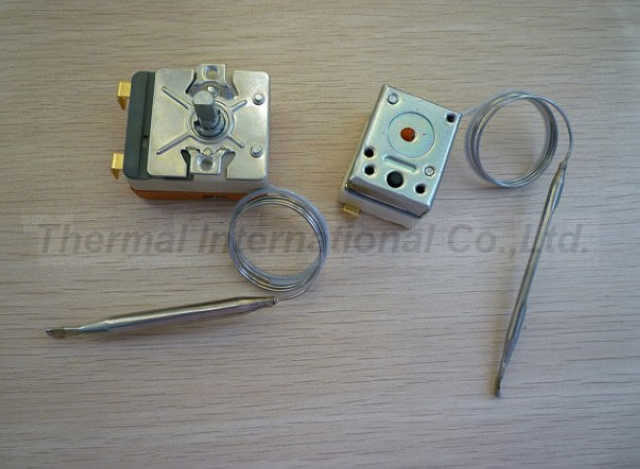

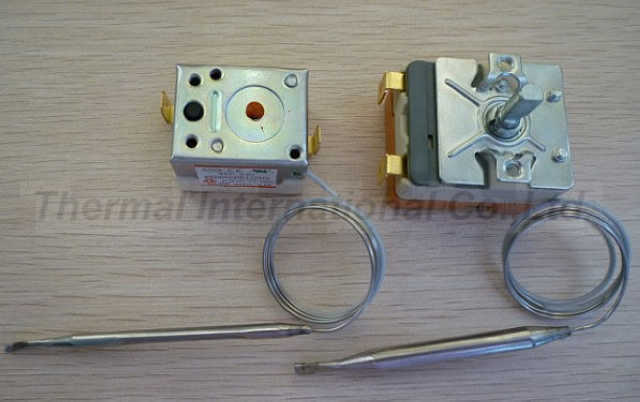

Electric Deep Fryer Thermostat 30-185 deg C
This Deep Fryer Thermostat has a capillary length of approx. 500mm, sensing bulb diameter of 6mm, rated at 16 amps 250V. It is suitable for a deep fryer, as the temperature range up to 185 degree Celsius when set to the maximum. If the Deep Fryer Thermostat requires capillary gland kit, it is also available.
Features of Deep Fryer Thermostat
  1. UL, CE, CQC, RoHS, and ISO compliant
  2. Available in a wide selection of preset temperature range and differential
  3. Temperature adjustable
  4. Auto-reset design
  5. Fixed preset temperature type (without adjusting pivot) available
  6. Snap-Action electric switch
  7. Little magnetic interference
  8. Long life usage
  9. Accessories, such as knob, bezel, capillary gland kit etc. Available
  10. A variety of " D" shaped adjusting pivots are available according to different length ?
Specificationsof Deep Fryer Thermostat
Temperature Range of thermostat
-35°C ~ +320°C
Temperature Range suitable for deep fryer thermostat
+30°C~+185°C
+30°C~+190°C
Temperature Differential
5% of Action Temperature
Length of Capillary
300mm~3000mm optional
Material of Capillary and Sensing Bulb
Stainless Steel
Diameter of Sensing Bulb
Standard: 6mm; (3mm, 4mm, 5mm, 6mm optional)
Electric Rating
16(3)A 250VAC
Wiring Diagram
Single Pole Single Throw (SPST)
Single Pole Double Throw (SPDT)
Direction of Terminal
45 degree
180 degree horizontal
90 degree downward
Material of Terminal
Brass
Size of Mounting Hole
2-M4
Min. Capillary Bend Radius
5mm
Temperature's Rate of Change
1°C/min
Life
100000 cycles
