Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2year
- Certification: CE ISO9001
- Power Source: Hydraulic
- CNC or Not: Normal
- Condition: New
Specifications

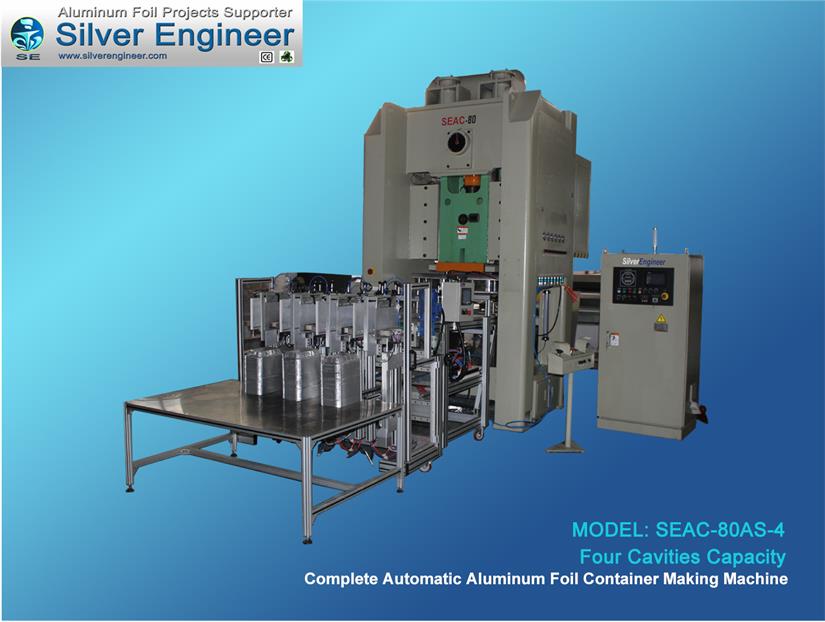

Complete Automatic Aluminium Foil Container Making Machine
Model: SEAC-80/110AS (Four Cavities or Five Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2.Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1200mm;
4.Max. diameter of Aluminum foil: 800mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 40-68 times/min;
7.Total Power: 14kw+2kw+2.5kw+3kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9.Install dimension: 6400*2600*3600mm;
Technical Data:
Max.mould size: 1400*1000*480mm;
Slide block stroke:150-260mm ; (Offer Stroke adjustable system as option!)
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1500*1000mm;
Mould handle hole dimension: 80*80mm(Diameter*Depth);
Power: 4P, 380/220V, 50/60Hz;
Net weight: 13,000kg.
SEAC-80AS is the four cavities or five cavities capacity model production line for AFC.
Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation.
SE have 55ton,63Ton,80ton,110Ton, Common feeder, Embossing feeder ,Common collector and Auto Stacker, Automatic scrap system for your option.
SEAC-80 is almost instead of by our SEAC-63. But some special market requested biggest machine to cover some biggest containers and big capacity, it's still comfortable option.
Keywords: aluminum foil container machine,aluminum foil container tool, aluminum foil rewinder,aluminum foil machine,aluminum foil container making machine, aluminum foil wrap, aluminum foil container mould, aluminium foil container machine, aluminium foil container making machine, aluminium foil container production line, aluminium foil container mould.
