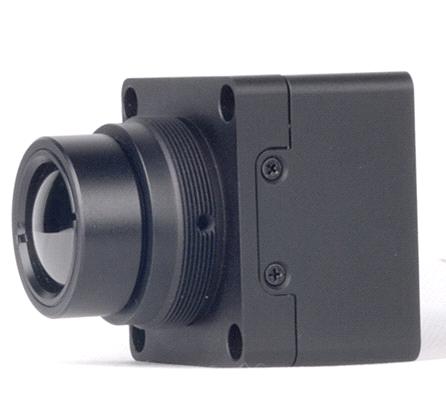

Thermal imaging camera, Infrared module core,No shutting technology
| Supply Ability: | 5,000 Piece/Pieces per Year |
|---|---|
| Shipping: | BY AIR (DHL,TNT,UPS) |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Specifications
No shutting technology(NST)
Instantaneous Boot<3s
Real-time continuous thermal video output
Super low power consumption<0.7w
Lower and wide voltage power supply,2.2V~5.5V
Small size(42x41x21),Light weight (30g)
9 pseudo color palettes changable
High sensitivity(≦60mk@ 300K,50HZ)
High sensitivity(≦60mk@ 300K,50HZ)
|
Items
|
|
M300C
|
|
Detector characteristic
|
Detector
|
Uncooled amorphous silicon FPA
|
|
Array format/Pixel pitch
|
384×288 / 25um
|
|
|
Sensitivity
|
≤60mk at f/1.0 300K
|
|
|
Frame rate
|
50Hz
|
|
|
Spectral range
|
8~14um
|
|
|
Imaging process
|
Shutter calibration
|
No shutter technology
|
|
Booting time
|
＜3s
|
|
|
Noise reduction
|
Digital filter
|
|
|
Image resolution
|
768×576
|
|
|
Lens optional
|
12mm, 19mm, 35mm, 40mm, 50mm, 75mm, 100mm, 150mm
|
|
|
Thermal imaging adjustment
|
Color palette
|
9 palettes changeable
|
|
Polarity reverse
|
yes
|
|
|
Mirror image
|
Horizontal/Vertical
|
|
|
Zoom
|
×2, ×4
|
|
|
Manual Gain
|
Cycle adjustment
|
|
|
Auto Gain
|
Auto adjustment
|
|
|
Power
|
Working voltage range
|
DC: +2.5V~+5.5V
|
|
Typical voltage
|
DC: 3.6V
|
|
|
Power consumption
|
＜0.75W
|
|
|
Anti reverse voltage
|
Yes
|
|
|
Anti over voltage
|
Yes
|
|
|
Environmental parameters
|
Working temperature
|
-20ºC~+60ºC
|
|
Optional:-40ºC~+60ºC
|
||
|
Storage temperature
|
-45ºC~+65ºC
|
|
|
Humidity
|
5%~95% Non condensing
|
|
|
Vibration and shock
|
Vibration: GJB 150-16 2.3.1
|
|
|
Axial:GJB 150-18
Experiment:7 100g/6ms
|
||
|
Lateral: GJB 150-18
Experiment:5 40g/11ms
|
||
|
Anti temperature impact
|
-5ºC/min(-40ºC~+60ºC)
|
|
|
Physical parameters
|
Weight
|
<40g
|
|
Dimension
|
42.5mm×41mm×20mm/42.5mm×51mm×20mm
|
|
|
Interface
|
Power input port
|
Yes
|
|
Serial port
|
RS-232
|
|
|
Analog video output
|
BNC(75Ω);Support dual video output
|
|
|
Digital video output
|
16Bit(50Hz)
|
|
|
Keyboard
|
4 buttons keyboard
|
