>Products Catalog > Themally conductive silicone interface pad heat transfer pad CPU thermally conductive pad

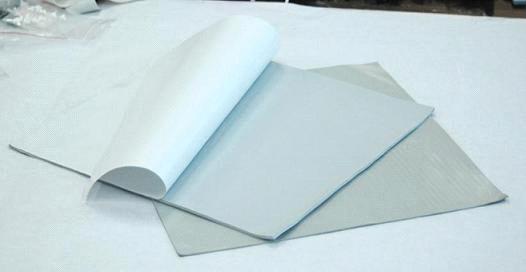

Themally conductive silicone interface pad heat transfer pad CPU thermally conductive pad
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Themally conductive silicone interface pad Thermally conductive silicone pad CPU thermally conductive pad silicone gap filler thermal conductive gap filler heat transfer pad thermally conductive insulator thermal gap filler pad thermal gap filler mat thermal gap filler blanket Thermal pad LED thermally conductive pad
Construction & Composition --- Silicone & Ceramic filled ---
Color --- Light Blue Visual
Thickness Range mm 0.5~5.0 ---
Hardness Shore C 25 ASTM D2240
Density g/cc 2.7 ASTM D792
Tensile Strength KN/m 0.3 ASTM D412
Elongation % 64% ASTM D412
Continuous Use Temp C -40 to 150 EN344
Breakdown Voltage Kv/mm ≥5.0 ASTM D149
Volume Impedance ohm-cm 1.1*1016 ASTM D257
Dielectric Constant 1MHz 7.15 ASTM D150
Weight Daminify --- <=0.3% at 150C 240H
Flame Rating --- V-0 UL 94
Thermal Conductivity W/m.k 3.0 ASTM E1461
UL, RoHS, REACH --- Compliance ---
Standard sheet size:200*400mm; Custom Die-cut parts available; Available with or without PSA on reinforced side
