Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

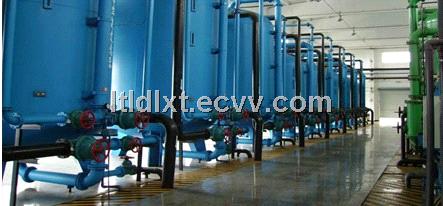

The equipment adopts the advanced treatment technology, which can remove the iron and manganese ion in the water effectively, accordingly, meet the requirements of decoloration and deodoration to keep the water qualified. When ground water with iron and manganese flows through iron and manganese removal filter equipment, the early pretreatment aeration device and the oxidizer added would make the iron (manganese) ions oxidized, passes by the manganese sand filter material layer, there is a further contact oxidation, in this way, water is filtered by under the biochemical action of filter material and multilayer filtration action of physical interception and adsorption, the iron and manganese ions would be settled gradually until removed.

Application fields

1. Food & beverage industry;

2. Wash of fibrics, dyeing and paper-making industry;

3. Manufacture of artificial silk, film dye, baryta paper and other chemical agents;

4. Fiber, dyeing, photographic film, starch and brewing industry;

5. Iron removal- the corrosion impurity in steam condensate.

Product features

1. The unique multi-filtration room structure, which can realize online backflush (simultaneous filtration, pollution discharge and backflush).

2. Electricity-saving: the effluent can be supplied to pipe network directly, no need of the secondary water supply system; it has the backflush function by itself, no need of backflush water pump.

3. Water-saving: this equipment adopts the “quincunx water distributer”, the distance between filtration layer and water distributer is shorten, which can save a lot of water for backflush.

Technical parameters

1. Treatment efficiency:

① Iron content:≤0.3mg/L;

② Manganese content: ≤0.1mg/L;

③ Effluent turbidity: ＜3FTU.

2. Feed water requirements:

① Iron content:≤20mg/L;

② Manganese content: ≤3mg/L;

③ Feedwater turbidity: ＜20FTU;

④ Alkalinity: ≤2mg/L

⑤ ph:＞6.0(iron removal), ＞7.5 (manganese removal).

3. Working environment parameters

① Working temperature: 5-60℃(according to special temperature, customization is allowed)

② Working pressure: ≤0.6Mpa

4. Run parameters

① Work-style: pressure type;

② Run mode: water flow direction from the top to the bottom, series (high iron-manganese content) or parallel connection

③ Filtration speed: 6-10m/h ( iron removal ), 5-8m/h ( manganese removal);

④ Run cycle: depend on the raw water quality, the lowest must be more than or equal to 8-hour;

⑤ Backflush way: water scrubbing, or the combination of gas-water for back flush;

⑥ Backflush time: 10-15 min;

⑦ Backflushing water consumption: 1-3%
