Shenzhen Angel Machine Co., Ltd.
China Manufacturer with main products: Water Treatment Machine, Bottle Water Washing Filling Capping Machine, Packing Mahcine, Water Dispenser |
gh efficiency 600BPH 5 gallon Beverge Processing Machine
| FOB Price: | 82,000.00 - 90,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set/Sets per Month |
| Shipping: | in 25 working days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | in export wooden case |
Specifications
Subject:Solution of 600BPH 5 Gallon Water Factory
Purchaser:
Attn:Mr.John (+86-15811833602)
Supplier:Shenzhen Angel Drinking Water Equipment Co.,Ltd.
Attn:Mr.John (+86-15811833602)
Supplier:Shenzhen Angel Drinking Water Equipment Co.,Ltd.
Author:John -------- International Engineer

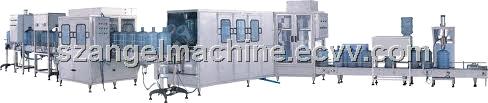

600BPH 5 gallon producing line includes : Decapper, outerwasher, Bottle infeed, bottle inner washer , filling and capping, shrink film wrap machine and bottle lift device.
Parameters of whole Line
1. Decapper: one paw
2. Outer washer 4 sation.
3. Bottle infeed: can carry 2 bottle at a times.
4. Inner washer: Inner washer we have 4 stations , 6 sation and 8 station design. washing steps includes dry, recyced water rinsing, heat lye sterilization, sterilied liquid ringsing, purified water rinsing.
5. Filler: 2 station. can fll two bottle at a time.
Parameters of Bottle Inner washer, fille and capper:
Electrical power: 220V+-5% 50Hz, 380V+-5% 50Hz
General power: 2.24 KW
Bottle's spec(mm): Φ270X490Xφ56, φ230X415Xφ56
Bottle's volume: 5 gallons & 3 gallons
Cap' spec: Φ58X40mm
Working pressure of compressed air: P≥0.6mpa
Bottle washing capacity: 200buckets/H
Bottle filling capacity: 200buckets/H
Size (mm): (L x W x H) Part of washing 2950X780X1520
Weight (kg): N.W 335
The direction of bottle output: Bottle output with linear direction
Besides, we also have the model from 60buckets/H to 600buckets/H.
