Amazing Technology(HK) Co., Ltd.
China Manufacturer with main products: Ceramic Capacitor, Electrolytic Capacitor, High Voltage Ceramic Capacitor, High End Ceramic Capacitor |

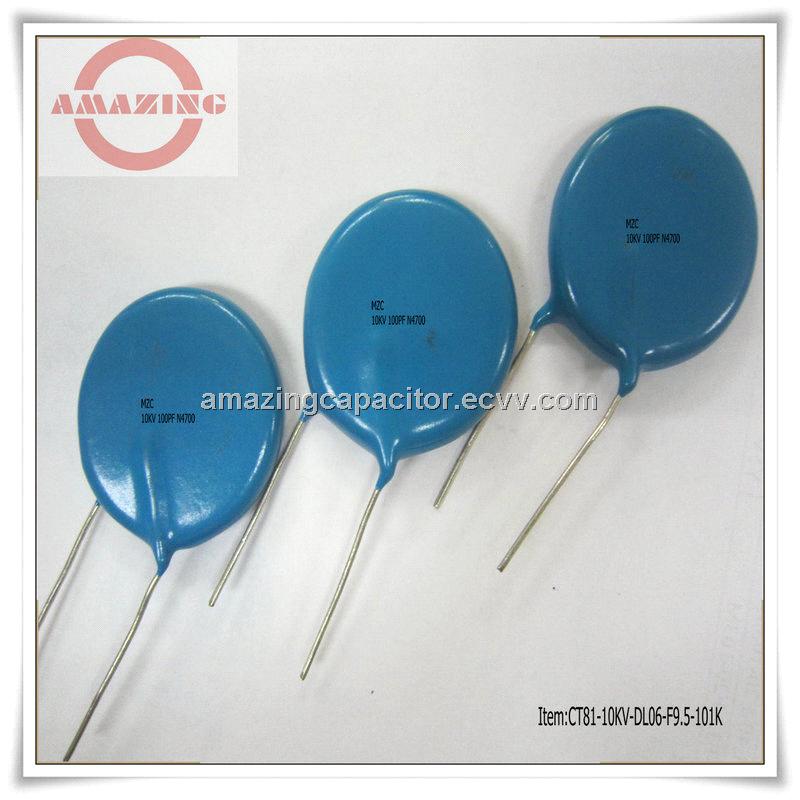

high voltage ceramic disc capacitor 10KV 100PF
| FOB Price: | 1.60 - 2.00 USD/Piece |
|---|---|
| Supply Ability: | 30,000 Piece/Pieces per Week |
| Shipping: | 15-30 days |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1000pieces/bag |
Specifications
High voltage ceramic disc capacitor 10KV 100PF
CT81-10KV-DL06-F9.5-101K
Introduction : Our high voltage ceramic capacitors are made from military materials and have the following characteristics ;super high voltage and super high frequency ,low partial discharging (PC),small insulation resistance. Our high voltage ceramic capacitor ceramic capacitor are applicable aviation spacecraft, intelligent power grid, step- up and voltage-multiplying circuit, digital circuit as measuring boxes, police equipment ,X-ray machine, CT machine and so on medical equipment ,security detecting equipment, electric power equipment, instruments and meters, mechanical equipment, anion generator ,high voltage generator etc. The rated voltage ranges of ours capacitor is from 1KV to 50KV and capacitance ranges from 10PF to 30000PF.Our ceramic capacitors are with high quality and at reasonable price .The estimated service life time is as long as 10 years .
Features
*Low dissipation factor
*High frequency
*High current
*High voltage
*High insulation resistance
*Long life than 10 years
Applications
*High frequency & high voltage power supplies;
*CO2 lasers, high voltage pulse generator
*X-ray equipment
*NDT (Non-destructive testing)
*Airport security equipment
*Military Project
Dimension & Lead Style:
Ceramic dielectric properties
|
NO.
|
Ceramic Dielectric
|
Operating temperature
Range(°C)
|
Insulation Resistance(≥MΩ)
|
Dissipation Factor≤
|
Temperature
characteristics
|
|
1
|
N4700(DL)
|
-25~+85
|
200000
|
0.2%
|
+-28%
|
Standard Ratings: Withstanding voltage ≥ 1.5 times of rated voltage(in oil)
|
NO
|
Part Number
|
Ceramic Dielectric
|
Capacitance
|
Max (mm)
|
||||
|
C
(pF)
|
TOL.
(%)
|
D
|
T
|
F
|
d
|
|||
|
1
|
CT81-10KV-DL06-F9.5-101K
|
N4700
|
100
|
10
|
06
|
6
|
9.5
|
0.65
|
Application :X-ray machine, medical equipment ,electrostatic spray equipment ,welding machine ,HF equipment ,etc.
Part items of High Voltage Ceramic Capacitor 10KV Series
Standard Ratings:
Withstanding voltage ≥ 1.5 times of rated voltage(in oil)
|
NO
|
Part Number
|
Ceramic dielectric
|
rated voltage
(KV)
|
Capacitance
|
Max (mm)
|
||||
|
C (pF)
|
TOL.(%)
|
D
|
T
|
F
|
d
|
||||
|
1
|
CT81-10KV-DL06-F10-101K
|
N4700
|
10
|
100
|
10
|
06
|
7
|
10
|
0.65
|
|
2
|
CT81-10KV-D08-F10-221K
|
Y5T
|
10
|
220
|
10
|
08
|
6.5
|
10
|
0.65
|
|
7
|
CT81-10KV-E10-F10-102M
|
Y5U
|
10
|
1000
|
20
|
10
|
6.5
|
10
|
0.65
|
|
16
|
CT81-10KV-F23-F17.5-103M
|
Y5V
|
10
|
10000
|
20
|
23
|
8
|
17.5
|
1.2
|
|
17
|
CC81-10KV-UJ23-F12.5-201J
|
UJ
|
10
|
200
|
5
|
23
|
9
|
12.5
|
1.2
|
|
19
|
CC81-10KV-NPO-F17.5-101J
|
NPO
|
10
|
100
|
5
|
32
|
9
|
12.5
|
1.2
|
