Specifications

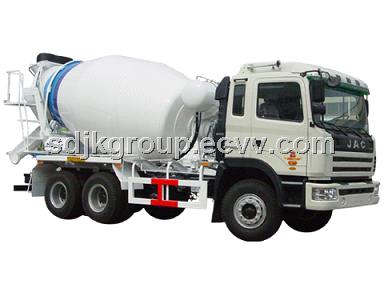

HYC3.0 HYC6.0 HYC8.0 HYC10.0 HYC12.0 Concrete truck mixer
Application: As the universal and necessary transportation tool in large and middle construction project the Concrete truck mixer is used to transport concrete between Concrete batching plant and construction site.
Application: As the universal and necessary transportation tool in large and middle construction project the Concrete truck mixer is used to transport concrete between Concrete batching plant and construction site.
Composition of the machine: Vehicle chassis and concrete mixing tank.
Machine feature:
1. Design of minor angle mixing tank ensure the gravity of tank is low and stable.
2. Tank back is equipped with big diameter hopper and downspouting so as to quickly feeding and discharging the concrete avoid from spilling.
3. With two screw mixing blade to ensure the mixture of the concrete completely and less concrete residue.
4. Diesel engine work autonomous in the process of transportation. Diesel engine meet the emission standard.
Model selection: According to required rated capacity of tank 3m3 6m3 8m3 10m312m3select HYC3.0 HYC6.0 HYC8.0 HYC10.0 and HYC12.0 accordingly.
|
model
|
HYC3.0
|
HYC6.0
|
HYC8.0
|
|
|
products capacity(m3)
|
3
|
6
|
8
|
|
|
drum volume(m3)
|
4.47
|
10
|
12.4
|
|
|
fill ratio(%)
|
67
|
67
|
67
|
|
|
rotation speed of drum(r/min)
|
0~12.5
|
0~11.5
|
0~11.5
|
|
|
drum centerline angle
|
160±15,
|
160±15,
|
160±15,
|
|
|
feed inlet height (excluding truck chassis) (m)
|
2.4
|
2.7
|
2.7
|
|
|
Min inlet height above ground (including truck chassis) (m)
|
1
|
1
|
1
|
|
|
drum weight(kg)
|
2500
|
4200
|
4800
|
|
|
Frame girder dimension (m)
|
L
|
4.3
|
4.3
|
5.55
|
|
W
|
0.87
|
0.87
|
0.87
|
|
|
overal dimension (m)
|
L
|
4.7
|
4.7
|
6.2
|
|
W
|
2.2
|
2.2
|
2.4
|
|
|
H
|
2.4
|
2.7
|
2.8
|
|
