Yingkou Zhongxing Colored Steel Sheet Equipment Co., Ltd.
China Manufacturer with main products: Roll Forming Machine, Large Span Roll Forming Machine, Super Span Roll Forming Machine, k-Span Roll Forming Machine |

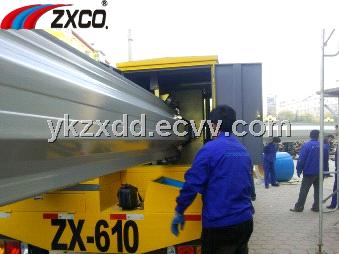

Super span ZX-305/ZX-610roll forming machine
| FOB Price: | 35,000.00 - 150,000.00 USD/Set |
|---|---|
| Shipping: | Dalian port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | 40'HQ |
Specifications
ZX-914-610(240) technical parameter:
1. Mounting dimension: 9500mm×2270mm×2450mm
2. Total weight: About 12T
3. Controlling system: PLC+Computer touch screen
4. Main forming unit driving motor power: 7.5kw
5. Curving motor power: 4.0kw+1.5kw_1.5kw
6. Electric cutting power: 3kw
7. Material of roller: 45#steel, quenched HRC52-58
8. Material of roller shafts: 45#steel
9. Material of cutting blade: Cr12
10. PLC Type: Siemens
11. Step of rollers: 14 steps
12. Feeding Width: 914mm
13. Effective Width: 610mm
14. Thickness of the coil: 0.6-1.5mm
15. The depth of the groove: 203mm
16. Working speed: Straight sheet: 15m/min
17. Arch sheet: 13m/min
18. Sewing: 10m/min
19. Max span: 38m
ZX-600-305(120) technical parameter:
1. Mounting dimension: 8800mm×2200mm×2080mm
2. Total weight: About 9T
3. Controlling system: PLC
4. Main forming unit driving motor power: 5.5kw
5. Curving motor power: 3kw+1.5kw
6. Electric cutting power: 3kw
7. Material of roller: 45#steel, quenched HRC58-62
8. Material of roller shafts: 45#steel, adjusted
9. Material of cutting blade: Cr12
10. PLC Type: Siemens
11. Step of rollers: 14 steps
12. Feeding Width: 600mm
13. Effective Width: 305mm
14. Thickness of the coil: 0.6-1.6mm
15. The depth of the groove: 109mm
16. Working speed: Straight sheet: 15m/min
17. Arch sheet: 13m/min
18. Sewing: 10m/min
19. Max span: 24m
