Specifications
Features and usages

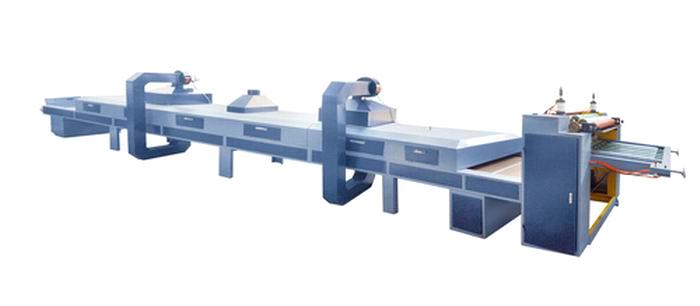

Memo Pad gluing machine is specialized in producing all kinds of notepad, business notepad, N times notepad, stickers and other adhesive to remain free to paste something essential products, it has nice outside looking, stable working, with the company of the LPM series label punching machine and YP Series book flatting machine can produce various shapes of N times notepad and any other notepads for many-time re-post purpose.
Technical parameters
Coating width: 550 mm
Coating speed :0-36m / min
Oven temperature: max: 100 ℃
Heating method: heating pipe
Total Power: 18KW
Weight: 2000kg
machine Dimensions: (length × width × height) 11800 × 1400 × 1500mm
Brief description of the machine structure:
1.Notepad making machine by the feed conveyor, the plastic device, oven, conveyor belt splicing, to close paper frame.
2.Glue roller transmission frequency converter stepless speed regulation.
3.Anilox roll cylinder pressure with traction control laminated.
4.By roller, scraper of the way with mobile Glue. By a different amount of glue, a variety of roller are available.
5.Oven heated by the heating pipe 4. With 2 sets of fans, forced air for uniform drying.
6.Send and the current conveyor roller in synchronization.
7.Electrical control panel, by the voltmeter, ammeter, frequency converter, oven temperature, light, and operation of the button, the air switch.
8.Cylinder operating handle, mounted on the left side of feed conveyor belt.
