Specifications

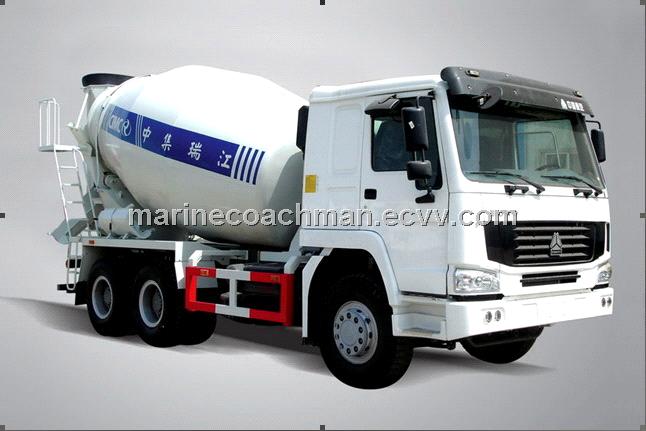

8m3 concrete mixer
General
Model: WL5253GJB
Truck: HOWO ZZ1252N4046F 6 x 4
Standard cabin with air conditioning
Engine Power: 247KW (336HP) Europe II
Front axle: HF9
Rear two axles: HC16
Axle space: 3625mm +1350mm
Steel spring leaves: 9/12
G. R. V. W (Kg): 25000
Tare Weight (Kg): 12870
Loading Capacity (Kg): 12000
Max. Speed (Km/h): 80
Brakes: Air braking
Tyres: 12: 00-20
Outline Dimension (mm): 9050 (L) x 2500 (W) x 3850 (H)
Displacement (cm3): 9726
Mixer Tank
Mixer Tank Volume (m3): 12
Valid Mixing Volume (m3): 8
Barrel Wall Thickness: 5mm
Mixing Blades thicknessl: 4mm
Loading Speed (m3/min): ≥ 3.2
Discharging Speed(m3/min): ≥ 2.2
Rest rate (%): ≤ 1
Mixer Speed (rpm): 0-16
Mixer Tank angle: 13°
Driving system (hydraulically controlled)
Speed Reduction System: ZF P4300 (made in Germany 100% new)
Pump: 5423-518/Eaton (made in USA 100% new)
Motor Model: 5433-138/Eaton (made in USA 100% new).
General
Model: WL5253GJB
Truck: HOWO ZZ1252N4046F 6 x 4
Standard cabin with air conditioning
Engine Power: 247KW (336HP) Europe II
Front axle: HF9
Rear two axles: HC16
Axle space: 3625mm +1350mm
Steel spring leaves: 9/12
G. R. V. W (Kg): 25000
Tare Weight (Kg): 12870
Loading Capacity (Kg): 12000
Max. Speed (Km/h): 80
Brakes: Air braking
Tyres: 12: 00-20
Outline Dimension (mm): 9050 (L) x 2500 (W) x 3850 (H)
Displacement (cm3): 9726
Mixer Tank
Mixer Tank Volume (m3): 12
Valid Mixing Volume (m3): 8
Barrel Wall Thickness: 5mm
Mixing Blades thicknessl: 4mm
Loading Speed (m3/min): ≥ 3.2
Discharging Speed(m3/min): ≥ 2.2
Rest rate (%): ≤ 1
Mixer Speed (rpm): 0-16
Mixer Tank angle: 13°
Driving system (hydraulically controlled)
Speed Reduction System: ZF P4300 (made in Germany 100% new)
Pump: 5423-518/Eaton (made in USA 100% new)
Motor Model: 5433-138/Eaton (made in USA 100% new).
