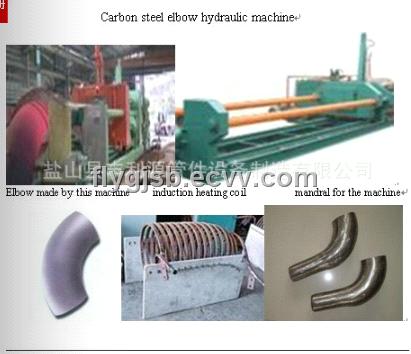

Carbon Steel Elbow Making Machine

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	no packing

Quick Details

YWT-xxxmm25mm hydraulic pushing elbow machine

(main technical parameters and scope of supply)

1 the oil cylinder: inside 280mm,the rod: 185mm, the effective trip: 4m, 2 bars

the maximum thrust of the 2 cylinders: 260 tons;

the forward speed: 0100cm/min,

the max backward speed: 380cm/min.

2 the pump station:

63scy-plunger pump :1 set, 18.5KW Motor: 1set (the main working pump)

25scy-plunger pump :1 set, 11KW Motor: 1set (the main working pump)

CB-63 gear pump: 1 set, 7.5KW motor: 1set (for fast forward and back)

CB-16 gear pump: 1 set, 4KW motor: 1set (for lifting the valve)

3 the frame for the main engine: 25# channel steel, welded with 24kg steel rail

4 the panel for the main engine: welded with 25mm medium plate

5 distribution cabinets, operation box 1 set

6 Intermediate-frequency power (power 500KW 380v, 220v, 50-60Hz)
