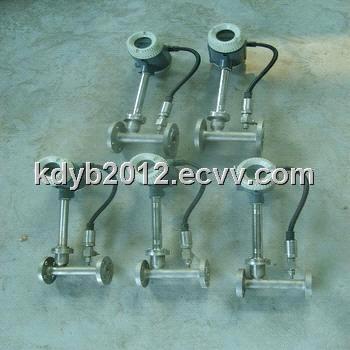

smart steam vortex flow meter with temperature and pressure compensation

Specifications

1. Introduction
    Stainless steel temperature and pressure compensation type steam vortex flow meter is an internationally advanced new type of flow meter, it is developed based on Karman Vortex Street Theory. It is applicable to the measurement of superheated steam, saturated steam, general gas and liquid.

2. Features:
a) Simple structure, no moving parts;
b) High accuracy , high reliability, no need of field debugging;
c) Capable of remote transmission of flow signal, able to make network with computer to implement central administration;
d) Unique design of amplify board, applicable to both gas and liquid.

3. Specifications:
Available form:Compact type,Remote type
Connecting methods:Flange connection,Flange clamped,Inserted
Caliber(mm):15~2000
Pressure(MPa):1.6MPa, 2.5MPa, 4.0MPa and above
Accuracy:±1.5%, ±1.0%
Applicable Medium:Superheated steam, Saturated steam, General gas and liquid
Medium Temperature:-40~+350
Power Supply:12~24V DC, 3.6V Lithium battery
Signal Output:Standard current, 4~20mA;Voltage pulse, low level1V, high level6V, load resistor150
Display:Two-line LCD local display,Remote transmission.
Explosion-proof Grade:IaCT6(intrinsically safe explosion-proof)
