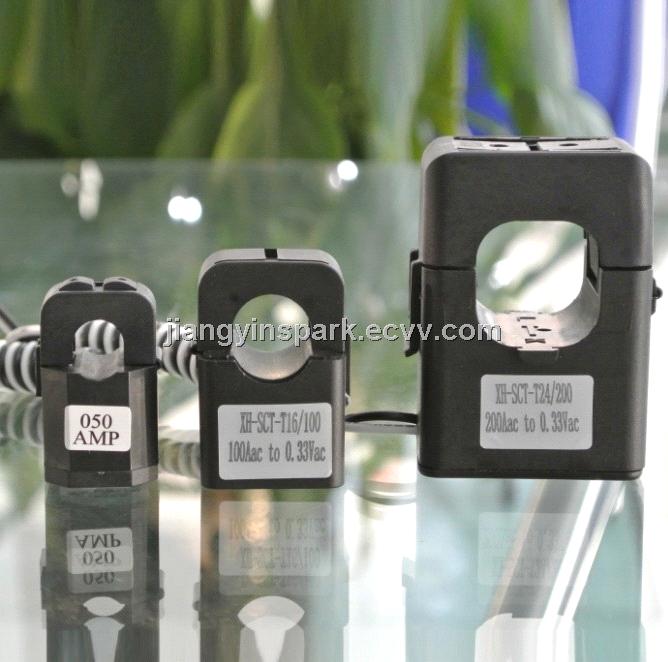

split core (clamp on) current transducer

Supply Ability:	500,000 Piece/Pieces per Month
Shipping:	As customer requirement
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	CARTONS

Specifications

split core (clamp on) current transducer

Features:
Small size, low cost
High secondary turns
Secure locking hinge
Features:
Maximum continuous primary current 5A to 300AAc
Current Ratio: 3000: 1
Output: 0.333 Volt at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600Vac
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
