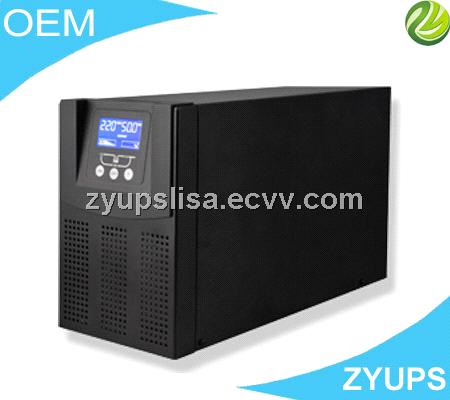

Online high frequency UPS 6Kva-20Kva 4.8Kw-16Kw

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard brown box packing

Specifications

Model No.		C6K	C6KS	C10K	C10KS	3C10KS	3C15KS	3C20KS
Rated Capacity		6Kva/4.8Kw		10Kva/8Kw			15Kva/12Kw	20Kva/16Kw
Input	Voltage Range	with two lines +ground wire,130~300VAC				Three phase with four lines +ground wire, 210~475VAC
	Frequency	46Hz~64Hz; 50/60Hz Adjustable
	Efficiency	≥ 99%
	Harmonic Distortion	≤ 5% (100% non-linear load)
Output	Voltage Range	220VAC ±1%
	Frequency	50Hz/60Hz ± 0.1%Hz
	Wave Form	Sine Wave
	Peak Value	3:1 (Max)
	Overload Capacity	110%~ 150% auto transfers to bypass output after 30s, above 150%~200% last 300ms.
	Transfer Time	Zero conversion
Battery	Mode	Lead-acid sealed, maintenance-free
	Backup Time	7 mins (full load), 20 mins (half load)	depend on the external battery	5 mins (full load), 13 mins (half load)	depend on the external battery
	Rated Voltage	192V		240V
Environment	Temperature	0oC~40oC
	Humidity	20%~90%
Size (L×W×H cm)		248×500×616	240×500×460	248×500×616	240×500×460	248×500×460	248×500×616	248×500×616
Net Weight(kg)		57	18	67.5	20	27	35	35
