Shenzhen Dongyihaoli Technology Co., Ltd.
China Manufacturer with main products: Gold Detector, Handheld Metal Detector, Walk through Metal Detector, Pipe Inspection Camera, Undervehicle Inspection Mirror, Door Viewer,... |
Home
>Products Catalog > Walk Through Metal Detector,Hand Held Metal Detector > HOT!!!Dual Channels 33 Zones Archway Metal Detector Gate, Walk through Metal Detector TEC-PD6500i

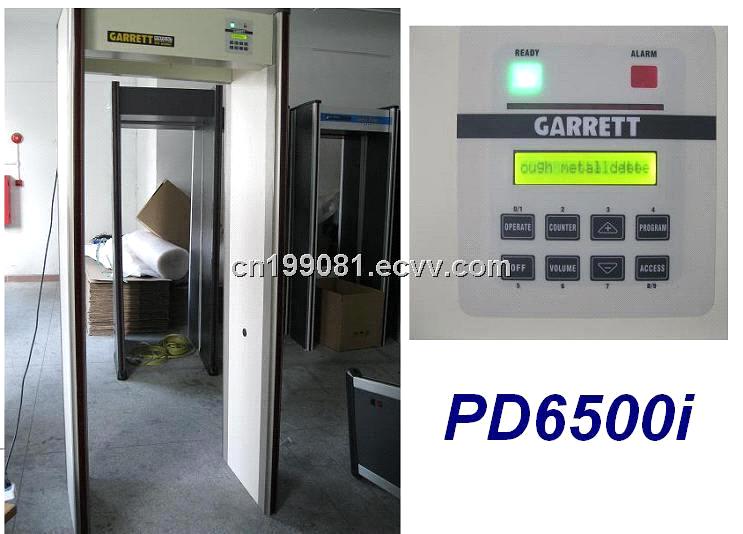

HOT!!!Dual Channels 33 Zones Archway Metal Detector Gate, Walk through Metal Detector TEC-PD6500i
| FOB Price: | 1,700.00 - 1,900.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Week |
| Shipping: | 3-5 work days |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | CARTON BOX, WOODEN BOX |
Specifications
The TEC-6500 is an advanced Digital Signal Processor (DSP) -Pinpointing based walk through metal detector that provides superior target detection with excellent m etal discrimination capabilities.
Traffic flow:
Pacing lights with international "wait" ( ) and "proceed" ( ) symbols are located on the entrance side of each panel and allow smooth and efficient traffic flow. The TEC-6500 traffic counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates the
alarm percentage.
alarm percentage.
TECHNICAL SPECIFICATIONS
1.1 DIMENSIONS
Passage Interior: Width: 30" (0.76m) Height: 80" (2m) Depth: 23" (0.58m)
Overall Exterior: Width: 35" (0.9m) Height: 87" (2.2m) Depth: 23" (0.58m)
Shipping: Width: 35.5" (0.9m)Height: 92" (2.3m) Depth: 6.5"(0.17m)
Shipping Weight: 165 lbs (74 kg)
1.2 OPERATING CONDITIONS
Temperature: -4 (-20) to +158 (70)
Humidity: Up to 95% non-condensing.
1.1 DIMENSIONS
Passage Interior: Width: 30" (0.76m) Height: 80" (2m) Depth: 23" (0.58m)
Overall Exterior: Width: 35" (0.9m) Height: 87" (2.2m) Depth: 23" (0.58m)
Shipping: Width: 35.5" (0.9m)Height: 92" (2.3m) Depth: 6.5"(0.17m)
Shipping Weight: 165 lbs (74 kg)
1.2 OPERATING CONDITIONS
Temperature: -4 (-20) to +158 (70)
Humidity: Up to 95% non-condensing.
DESCRIPTION OF CONTROLS, DISPLAYS AND ALARMS
1.3.BAR GRAPH
The LED bar graph is comprised of a series of lights. The bar graph light activity represents the level of metal detection intensity occurring within the archway. The detection intensity is dependent upon the quantity and composition of the metallic object(s), and the program and sensitivity
settings of the unit. he bar graph also indicates the presence of electrical interference and
interference from nearby moving metallic objects.
1.4. READY LIGHT
The green READY light appears when power is on and the TEC-6500 is ready to detect metal. The ready light must be illuminated before a patron is permitted to enter the walk-through.
1.5 BACKLIT LCD
The LCD is a visual display located in the overhead panel. The LCD reports calibration and operational information, including program and sensitivity settings, operator functions and fault indication. The LCD displays all self-prompting regulation and control functions as well as traffic count information.
1.3.BAR GRAPH
The LED bar graph is comprised of a series of lights. The bar graph light activity represents the level of metal detection intensity occurring within the archway. The detection intensity is dependent upon the quantity and composition of the metallic object(s), and the program and sensitivity
settings of the unit. he bar graph also indicates the presence of electrical interference and
interference from nearby moving metallic objects.
1.4. READY LIGHT
The green READY light appears when power is on and the TEC-6500 is ready to detect metal. The ready light must be illuminated before a patron is permitted to enter the walk-through.
1.5 BACKLIT LCD
The LCD is a visual display located in the overhead panel. The LCD reports calibration and operational information, including program and sensitivity settings, operator functions and fault indication. The LCD displays all self-prompting regulation and control functions as well as traffic count information.
