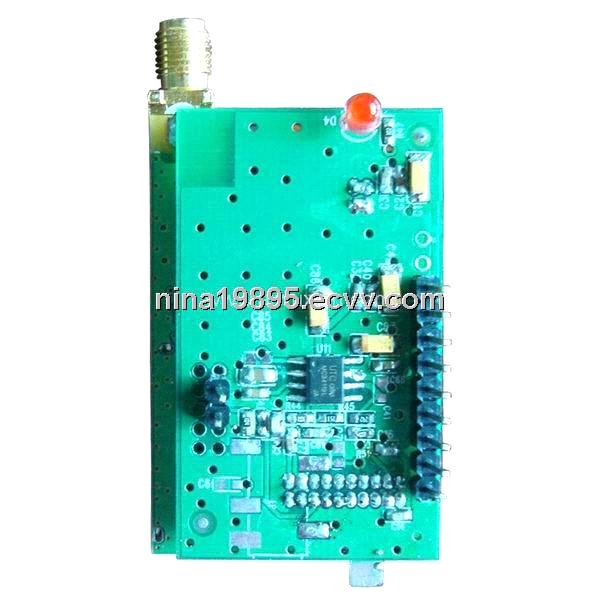

2.4G wireless module - data, voice transmission module
| Supply Ability: | 10,000 Piece/Pieces per Month |
|---|---|
| Payment Terms: | L/C, T/T, D/A, D/P, Paypal, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1 pcs packed in color box |
Specifications
2.4G wireless module-data, voice transmission module supports Two-way Voice Transmission or transmit data by UART that amount can be 2Kbit / S. It is smaller, lower power use, transmission longer, and stronger anti-jamming capability, so it can be widely used in various occasions which need short-range wireless communications. Industrial-grade chips guarantee the stability. According your needs, different programs are convenient for your secondary development application.
Features:
1. Operating frequency 2.4G ISM digital public band.
2. Support UART data exchange.
3. AFH Adaptive Frequency Hopping technology.
4. Shared 2.4G band with wireless LAN and Bluetooth devices at the same time.
5. Support voice intercom, the onboard microphone input and mono speaker output.
6. transmit power≥ 18dBm, and receive sensitivity of-100dBm.
7. Open transmission distance of 500 - 600 meters
8. Baud rate 38400bps
9. 2.54 pitch pin connector module can directly plug.
Application scope :
In short-range wireless data transmission
Data transfer, acquisition Automatically
Automatically records residents' meter, such as water, gas, heat, electricity meter
2.4G wireless module - data, voice transmission module
|
JSAM-701
|
||
|
Functions
|
||
|
1.Data transmission
|
2.Voice transmission
|
3. secondary development
|
|
Project
|
Contents
|
|
|
Comprehensive index
|
Main Board
|
24LE1
|
|
Transmission mode
|
2402-2483.5
|
|
|
Comprehensive Functions
|
Bidirectional Serial Transmission and Two-way Voice Transmission
|
|
|
Expand Functions
|
Secondary Developed
|
|
|
Control Mode
|
Custom IO Control
|
|
|
Serial Communication
|
Exchange Data With UART
|
|
|
Output Power
|
Module Output Power
|
0.1W
|
|
Electrical Characteristics
|
Input voltage
|
3.7V-5V
|
|
Voice Transmission Consumption
|
130mA±5mA(Duplex intercom)
|
|
|
Data Transmission Consumption
|
110mA±5mA
|
|
|
Standby current
|
0.5mA
|
|
|
Transfer rate
|
250Kbps---2Mbps
|
|
Definition of Pin Function:
|
VDD
|
Operating voltage,DC3.7V-5V
|
|
GND
|
Signal Ground
|
|
UART-TX
|
Transmit Data(need external voltage 3.3V)
|
|
UART-RX
|
Receive Data(need external voltage 3.3V)
|
|
SPK
|
Spreaking
|
|
MIC
|
Microphone
|
|
RESET
|
Reset the System
|
|
IO Control
|
Control module enter into the data transmission or voice talkback state. When the electric which exterior provide for is higher than 3.3 V, it will enter the data transmission; When the electric which exterior provide for is hang, module enter into the speech talk back. Note: It need two module feed to high level at the same time to enter the data transmission.
|
|
Code Matching
|
Control module of code
|
|
LED Instruction
|
Indicating the state
|
