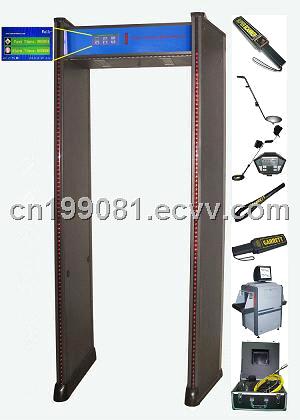

Skillful Manufacturers 24 Detection Zones Security Archway Metal Detector Gate with 7" LCD TEC-800P

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton box, wooden box

Specifications

Function and characteristic
1)display panel: adopt 7 inches color LCD screen.

2)Boot self-checking function: the system will automatically boot: working state

detection equipment is normal or not, the system will display the malfunction

move down the content.

3)Operating system: Chinese/English menu option/computer remote operation

mode/the host panel networked digital key operation mode/the infrared remote

digital key operation mode/the user can select one to a variety of operating

mode/friendly human-machine interface/interactive WINDOWS style.

4)Detection zone: industry-leading position detection of 24 zones, according to

the location in metal items, more accurate location can also alarm, can judge

metal items precisely.

5)Function of the zone: either the basic properties of human body structure of metal

door by detecting the overlapping area detection means, eliminate the reticular

detection area "weak area" and "blind" using a single frequency excitation in

detecting technology of forming zone is uniform magnetic field density, strong

penetrating power and detection sensitivity, stable performance.

6)The detection sensitivity adjustment: uniform domains can adjust sensitivity

(300 grade three different occasions usage patterns) highest sensitivity can detect

the size of the metal, paperclips blades at 0-99 between sensitivity adjustment,

and the metal items weight, volume, size, site, coins, key, jewelry,

strap etc false-negatives.

Specifications

1. Electric current : AC115V/230~250V50/60Hz (in conformity to CE)

2. Power : less than 30W

3. Weight : about 78 kg

4. Work environment : 0°C ~ +45°C

5. External dimension : 2200mm*800mm*560mm

6. Internal passage dimension : 2055mm*700mm*500mm

7. Technical standard : GB15210-2003

8. Color : Gray
