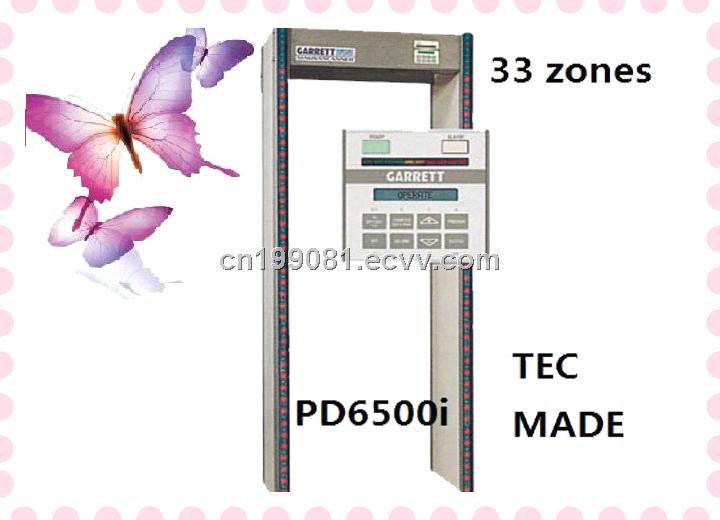

Good Price 33Zones Walk though Body Scanner, Door Frame Metal Detector PD6500i

FOB Price:	1,700.00 - 1,900.00 USD/Set
Supply Ability:	500 Set/Sets per Week
Shipping:	3-5 work days
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Metal Detector-CJ-WM1000 Cylindrical Structure ...

Price:

Min. Order:
Industrial X Ray Inspection Machine 4080 for Fo...

Price:25000.00-40000.00 USD/Piece

Min. Order:1 Piece
Industrial x Ray Generator

Price:1.00-10,000.00 USD/Set

Min. Order:1 Set
Pharmaceutical Metal Detector

Price:

Min. Order:1 Set
Money Detecting Machine for multi-currencies ma...

Price:

Min. Order:
High Power Multi-electrode Electrical Resistivi...

Price:1.00-2.00 USD/Set

Min. Order:1 Set
Metal Detector

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton box, wooden box

Specifications

TEC-6500i walk through metal detector is an advanced Digital Signal Processor (DSP) -Pinpointing based walk through metal detector that provides superior target detection with excellent m etal discrimination capabilities.

Traffic flow:

Pacing lights with international "wait" and "proceed" symbols are located on the entrance side of each panel and allow smooth and efficient traffic flow. The TEC-6500i traffic counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates the
alarm percentage.

TECHNICAL SPECIFICATIONS
1.1 DIMENSIONS
Passage Interior: Width: 30" (0.76m) Height: 80" (2m) Depth: 23" (0.58m)
Overall Exterior: Width: 35" (0.9m) Height: 87" (2.2m) Depth: 23" (0.58m)
Shipping: Width: 35.5" (0.9m)Height: 92" (2.3m) Depth: 6.5"(0.17m)
Shipping Weight: 165 lbs (74 kg)

1.2 OPERATING CONDITIONS
Temperature: -4 (-20) to +158 (70)
Humidity: Up to 95% non-condensing.

DESCRIPTION OF CONTROLS, DISPLAYS AND ALARMS

1.3.BAR GRAPH
The LED bar graph is comprised of a series of lights. The bar graph light activity represents the level of metal detection intensity occurring within the archway. The detection intensity is dependent upon the quantity and composition of the metallic object(s), and the program and sensitivity
settings of the unit. he bar graph also indicates the presence of electrical interference and interference from nearby moving metallic objects.

1.4. READY LIGHT
The green READY light appears when power is on and the TEC-6500i is ready to detect metal. The ready light must be illuminated before a patron is permitted to enter the walk-through.

1.5 BACKLIT LCD
The LCD is a visual display located in the overhead panel. The LCD reports calibration and operational information, including program and sensitivity settings, operator functions and fault indication. The LCD displays all self-prompting regulation and control functions as well as traffic
count information.
