AVIC (Dongguan) Yangtian Electronic Technology Co., Ltd.
China Manufacturer with main products: outdoor lcd, lcd advertising display, digital signage, outdoor display, advertising player, lcd display |

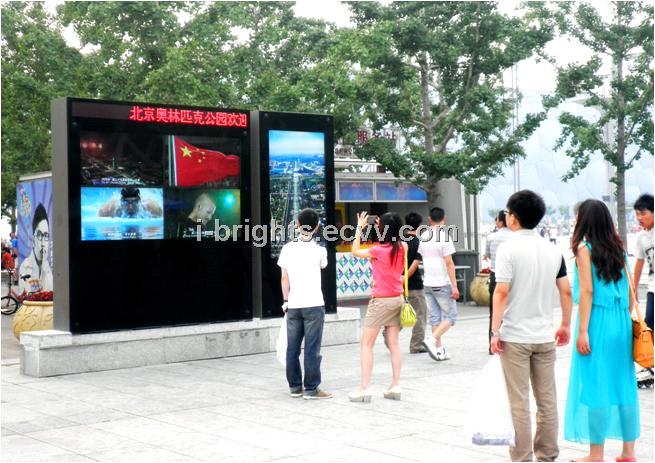

46 inch 2x2 & 70 inch outdoor lcd display group
| Supply Ability: | 1,500 Piece/Pieces per Month |
|---|---|
| Shipping: | delivery time is 20-25 working days after received the down payment, EXW price |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden box generally and optional based on customers' request |
Specifications
1. Product parameter table:
| Display Parameters | Model No. | YT7000P |
| LCD Panel Size | 70'' | |
| Panel Brand | SAMSUNG | |
| Aspect Ratio | 16:9 | |
| Backlight Technology | LED | |
| LCD Panel Technology | SPVA | |
| Display Colours | 16.7M | |
| Display Size | 1549.0*871.5mm | |
| Resolution | 1920×1080 | |
| Pixel Pitch | 0.807×0.807 mm | |
| Brightness | 1500cd/m2 | |
| Contrast Ratio | 2000:1 | |
| Viewing Angle | 178° | |
| Response Time | 8ms | |
| Brightness Control | Automatic control | |
| Backlight Life | 50000 Hours | |
| Structure | Installation Method | Floor standing |
| Dimension of Overall Unit | 2500*1165*400mm | |
| Material of Housing | Steel with painting or alumimium with painting (alternative) | |
| Exterior Colours | Brown or customized color | |
| Protection Rating |
IP55 (Fan cooling) IP65(Air conditioner cooling ) |
|
| Weight | 300 kg | |
| Signal Interface | Computer Serial Input | RS-232 |
| Network cable port | RJ45 | |
| DVI Input | One DVI input | |
| HDMI Input | One HDMI input | |
| Power | Mains Input | AC100-240V,50/60Hz |
| Power Consumption | 2300W | |
| Standby Power consumption | 30W | |
| Working Environment | Temperature Control | Intelligent constant temperature control |
| Operating Temperature | -30°C~55°C | |
| Storage Temperature | -40°C~75°C | |
| Working/Storage Humidity | 10%-90% | |
| Cooling system | Forced air cooling or Air conditioner (Optional) | |
| Configuration | Hardware |
Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) |
| Software |
Content releasing system from the server Player system Inquiry system(Optional) Local monitorng security system(Optional) Remote network (Optional) |
2. Main features and functions:
1) LCD play control system : grouping , time-period , synchronization and Clustered-Control.
2) Can realize the remote release of the play content.
3) Can realize the remote monitoring and centralized control based on the web 3G technology with the on line system and status monitoring system (Optional)
4) Auto turn-on/off function.
5) Safety system: all weather monitor, built in 24 hour backup DVR (optional).
6) LCD screen segmentation function.(Video processing technology)
7) High definition, high brightness and sunlight readable.
8) Intelligent environments management system: Automatic regulation of brightness, environment monitoring, warning and prevent contrived damage.
9) Intelligent temperature control system: Regulate the humiture for the inner of the device and make sure the device can be operating normally.
10) The outdoor protection level reached IP65,include waterproof, dust free, damp proof anti-corrosion and etc.
11) Adopt the aviation anti-violence safety technology.
12) Reliability: MTBF reached 50,000 hrs, and no obvious brightness decay within 20,000 hrs.
13) Multiple video interfaces: HDMI, VGA, DVI, USB etc.
14) Format of Video/Audio/Picture/Others: MPEG1/2/4, WMV, AVI, VOB; MP3; JPG; FLASH, PPT, TXT.
3. Application area:
The outdoor lcd displays are widely used on commercial district, shopping mall, station, walking street, square, recreation place, spots and used for publicity for the government and enterprise.
