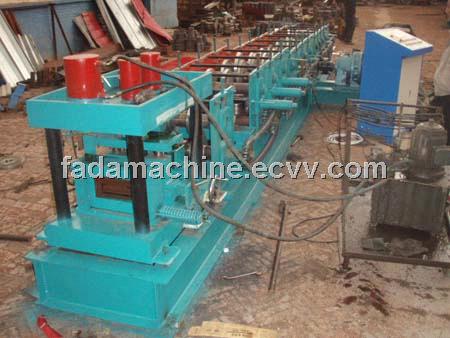

Automatic C Shaped Forming Machine/Metal Shaped Machine
| FOB Price: | 22,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set/Sets per Month |
| Shipping: | Within 50 Working Days after get 50%TT as deposit |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Fit For Shipping Ocean |
Specifications
Our company specialized in producing C Shaped Forming Machine/Structure Frame Forming Machine.
Below are the features of C Shaped Forming Machine/Structure Frame Forming Machine.
1. Dimension : 9.5m(L)*1.5m(W)*1.2m(H)
Below are the features of C Shaped Forming Machine/Structure Frame Forming Machine.
1. Dimension : 9.5m(L)*1.5m(W)*1.2m(H)
2. Total weight: about 6~6.5T
3. Main motor power: 11kw
4. Reducer: cycloidal planetary speed reducer.
5. Material of structure: : GB 350mm” H” steel
6. Chains : 2 inch
5. Material of structure: : GB 350mm” H” steel
6. Chains : 2 inch
7. Thickness of mid-plate: 18mm
8. Material shaft: 45# steel, diameter: 80mm, Quenched after the finished form. Orign: Shougang Beijing
8. Material shaft: 45# steel, diameter: 80mm, Quenched after the finished form. Orign: Shougang Beijing
9. Leveling machine: 9 roller flatteing, diameter of roller: 110mm, usingφ 114mm wall thickness
15m 45# seamless steel tube, finish maching, hard chrome plating on surface.
10. Die roller: all adopt Gr15(ball bearing steel), through hammer, finish machining, quenching(hardness: 50° ~52° ), line cutting at the keyway, then hard chrome plating on surface.
11. Adjust set: adopt 45#steel, seaming steel tube through finish maching, line cutting cut snaps forming.
12. Roller: 14 axis
13. Auxiliary wheel: 6 rows adjustment auxiliary wheel.
14. Specification of C purlin machine: adjust width(80-300mm) wall height(40-80mm)
15. Thickness of plate: 2-3mm
16. Working speed: 8-20m/min
17. Type replacement method: external nud adjust
Twist off, punching machine(rolling speed when punching within 6m/min)
1. Dimension : 1.2m(L)*0.9m(W)*1.2m(H)
2. Hydraulic station: 7.5kw
3. Diameter of Twisting off pump : 180mm, range: 100mm
4. Puching mould: Cr12 heat treatment, precision grinding, line cutting.
5. Electric equipment: imported TAIDA 24 points PLC, encoder. Chint, Delixi and other control parts from other countries
6. Twist off mould: Gr12 quenched heat treatment, precision grinding, line cutting forming, can customize as client’ s demand
Have twisting off mould: 5 sets
The product advantages:
1. This machine use 9 rollers level, effective flating, drive adopt coupling activity, can automatically out of touch with host , Avoid synchronization difficult to bring equipment to run
2. Roller die: adopt Gr(bearing steel)hardness, Wear resistance. General 1 year no obvious wear, hard chromium plated to increase resistance
3. Main machine adopt external nut adjust, Quick and easy replacement when the utility model. Hookswitch adopt 45 # steel with fine cars, quenching, line cutting and high hardness, will not bend
4. Adjust set: Using snap-in, uninstall convenient, good interchangeability, easy off, easy to change
5. Forming way: Cold gradually forming
6. High degree of automation, labor saving, save time, the material standard.
To learn more about C Shaped Forming Machine/Structure Frame Forming Machine, please don' t hesitate to call us, thank you.
To learn more about C Shaped Forming Machine/Structure Frame Forming Machine, please don' t hesitate to call us, thank you.
