Specifications
Brief Introduction

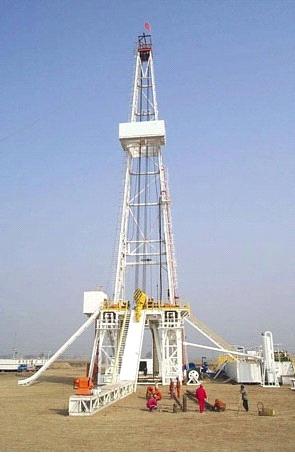

Rigs are used in oil and gas exploration and development. Products comply with API Spec 4F, 7K, 8A, Models and Basic Parameters of Rigs (SY/T5609-1999) and related standards, and API symbol occupancy permit has been obtained.
Technical Performance & Characteristics
DC and drive drilling rigs are driven by AC-SCR-DC and AC-DC-AC respectively so as to achieve intelligent control over the rigs. A rig is powered by a diesel generator set, and a drawworks is provided with a hydraulic brake pad and an auxiliary Eaton brake. Winches, drilling pumps, and rotary tables all adopt independent electric drive and stepless speed regulation (rotary tables may also adopt combination drive).
The derrick is in K-shaped structure, and the base in swing-up or case block type structure, both of which (if any, the latter shall be of swing up type) are installed at a lower position and hoisted as a whole. The drilling control room imposes centralized control so that rigs are delivered automatically. An AC variable-frequency drilling rig provides dynamic braking.
Main Technical Parameter
|
Model
Parameters
|
ZJ20/1350J
|
ZJ30/1700J
|
ZJ40/2250J
ZJ40/225DB
|
ZJ40/2250DB
ZJ40/2250DZ
|
ZJ50/3150J
ZJ50/3150L
ZJ50/3150DB
ZJ50/3150LDB
|
ZJ50/3150DB
ZJ50/3150DZ
|
ZJ70/4500LDB
ZJ70/4500LDZ
ZJ70/4500DB
|
|
Nominal drilling depth m
|
1200~2000
|
1600~3000
|
2500~4000
|
3500~5000
|
4500~7000
|
||
|
Max. hook load kN (lbf)
|
1350(303,500)
|
1700(382,000)
|
2250(505,800)
|
3150(708,200)
|
4500(1011,600)
|
||
|
Rated power of drawworks kW(hp)
|
484(650)
|
735(1000)
|
1100(1500)
|
1470(2000)
|
|||
|
Tethered structure of runner wagon systems
|
4*5
|
5*6
|
6*7
|
||||
|
Dia, of drilling wire lines mm(in)
|
28.5(1 1/8)
|
32(1 1/4)
|
35(1 3/8)
|
38 (1 1/2)
|
|||
|
Unit power of a drilling pump kW(hp)
|
590(800)
|
735(1000)
|
960(1300)
|
960(1300)1180(1600)
|
1180(1600)
|
||
|
Dia. of opening on rotary tables mm(in)
|
520(20 1/2)
|
698.5(27 1/2)
|
952.5(37 1/2)
|
||||
|
Drill floor height m(ft)
|
3.5(11.5);4.5(15)
|
4.8(16);6(20)
|
7.5(25)
|
9(30)
|
9(30);10.5(35)
|
||
|
Structure type
|
Triangular A-shaped cross-section
|
K-shaped, open front
|
|||||
|
Height m(ft)
|
34(112)
|
42.5(139)
|
43(141)
|
45(148)
|
|||
