Jinan Sinotruck Co.

China Manufacturer with main products: HOWO Truck, HOWO Truck Parts, Dongfeng Parts, SINOTRUK HOWO Truck, Truck Spare Parts, Heavy Machinery

Home  >Products Catalog > TRUCK > HOWO Logging Transport truck

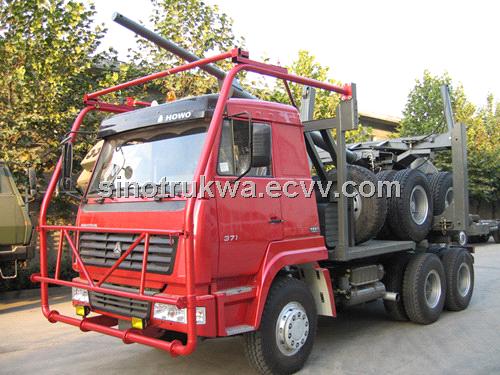

HOWO Logging Transport truck

FOB Price: 35,000.00 - 45,000.00 USD/Set
Supply Ability: 1,000 Set/Sets per Month
Shipping: within 40 working days after received the deposit
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

HOWO Tipper truck
Engine model:   WD615.95  WD615.96
Engine Capcity:   9.726L
Dimensions(LxWxH)(mm):   9145*2496*3190,3406
The total mass(kg):   31000
Kerb weight(kg):   15110  15320
Approach/departure angle(°):   19/27
Wheelbase(mm):   1800+2800+1350
Shaft number:   4
Enginer Power(kw):   247  276
Carriage inner dimension (LxWxH)(mm):   6200*2300*1200,1300
In the quality of the utilization factor:   1.05  1.02
Reted contained mass:   15760  15550
Front/Rear hanging(mm):   1500/1695
Axle-load:   6300  7000
Maximum speed(km/h):   75
Max torque:   1350N.m
Rated Revolution:   2200r/min

Name vehicles: HOWO Tipper truck
Engine model: WD615.47 371hp
WD615.69 336hp
Engine capacity: 9.726L
Engine type:  4-stroke direct injection diesel engine,6-cylinder in-line with water cooling,turbo-charging&intercooling.
Max.torque: 1350NM/1300-1600rpm
Bore/Stroke(mm): 126/130
Compression ratio: 17:01
Specific fuel consumption: ≤193g/kW.h

Gear box: HW19710 10 speeds
Clutch: Φ430 Diaphragm type
Steering: HOWO ZF8098 hydraulic steering with power assistance
Front axle: HF9 ton front axle with drum brake
Rear axle: HC16 (HOWO strengthened axle,reduction driving axle)
Tyre: 12.00R20 radial tires
Rims: 8.5-20,10 hole-steel

Service brake: Dual circuit compressed air brake
Parking brake(emergency brake): Spring inner pressed air operating on rear wheel
Auxiliary brake: Engine exhaust valve brake
Spring: 9/12,4/12
Fuel tank capacity(L): 400
Fuel consumpyion (L/100km): 32
Max Speed(km/h): 75

Kerb.mass: 125000kg
Total mass: 25000kg
Wheel base(mm): 3625+1350
Front overhang(mm): 1500
Rear overhang(mm): 725/700
Front track(mm): 2022
Rear track(mm): 1830
Approach angle: 16 degree
Departure angle: 70 drgree
