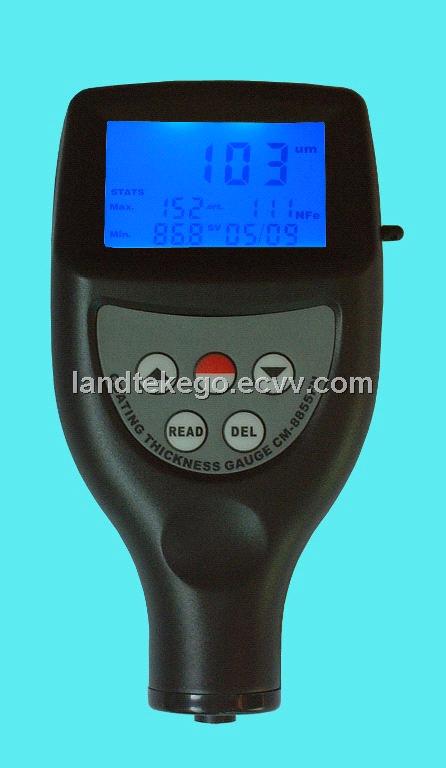

Multifuctional Coating Thickness Gauge CM8855

Supply Ability:	2,000 Piece/Pieces per Month
Shipping:	DHL FEDEX UPS TNT AIR SEA
Payment Terms:	T/T, Paypal, Western Union

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton

Specifications

Model:CM8855
1.FEATURES
x It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.
x The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc,aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) .
often used to measure the thickness of galvanizing layer, lacquer layer,porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.
x The N probes measure the thickness of n o n - m a g n e t i c c o a t i n g s o n n o n -m a g n e t i c m e t a l s . I t i s u s e d o n anodizing, varnish, paint, enamel,plastic coatings, powder, etc.
applied to aluminum, brass, non-magnetic stainless steel, etc.
x Automatic substrate recognition.
x Manual or automatic shut down.
x Two measurement mode: Single and Continuous
x Wide measuring range and high resolution.
x Metric/Imperial conversion.
x Digital backlit display gives exact reading with no guessing or errors.
x Can communicate with PC computer for statistics and printing by the optional cable.
x Can store 99 groups of measurements.
x Statistics is available.
2.SPECIFICATIONS
Display: 4 digits LCD, backlit
Range: 0~1250 μm/0~50mil (other ranges can be specified )
Min.radius workpiece: F: Convex 1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm
Min. measuring area: 6mm
Min.Sample thickness : 0.3mm
Resolution: 0.1 μm (0~99.9μm); 1 μm (over 100μm)
Accuracy: ±1~3%n or 2.5 μm or 0.1mil
(Whichever is the greater)
Bttery Indicator: Low batter indicator.
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temp. 0~50C .
Humidity <95% .
Size: 126x65x35 mm; 5.0x2.6x1.6 inch
Weight: about 81g(not including batteries)
Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories: RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
