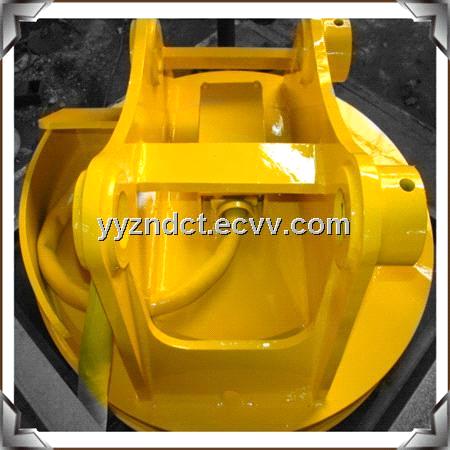

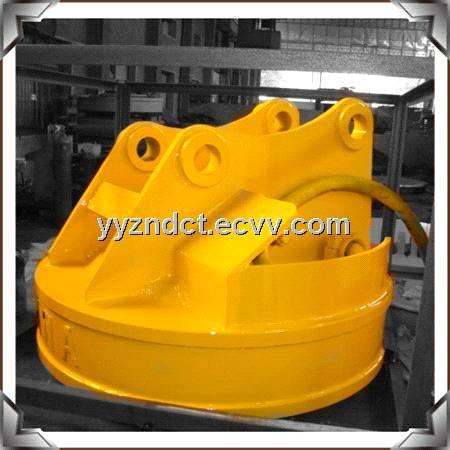

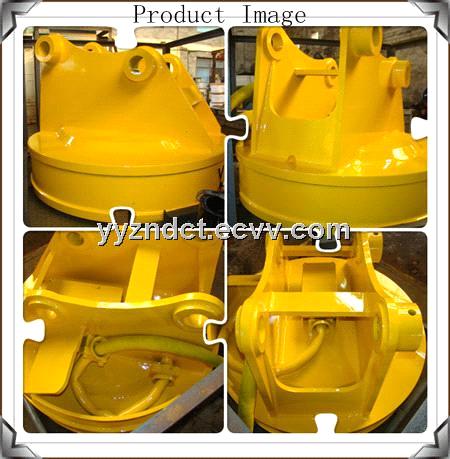

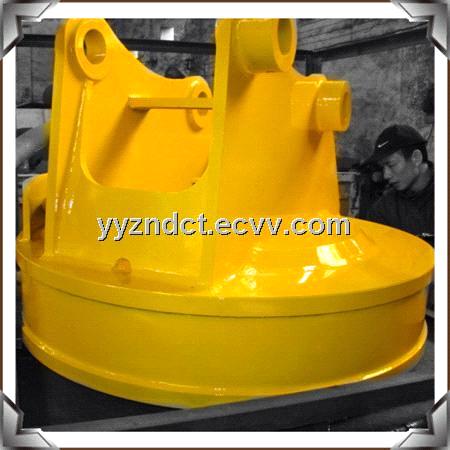

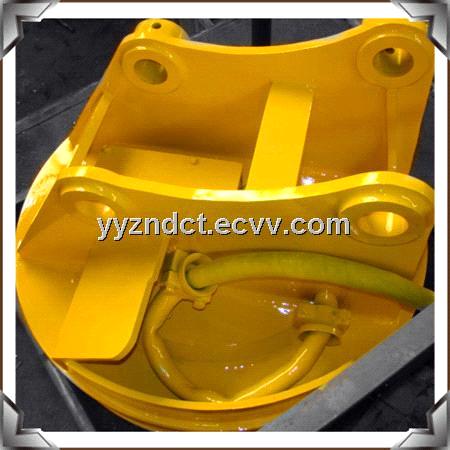

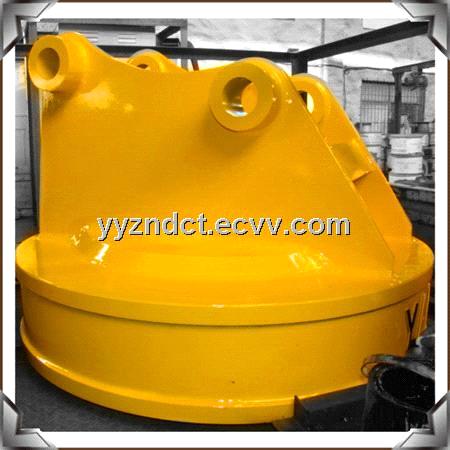

1800mm Round Material Handling Magnet on Excavator

FOB Price:	15,000.00 - 45,000.00 USD/Set
Supply Ability:	35 Set/Sets per Month
Shipping:	25 days after order, CIF any port of China
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	Standard Export Packing (Ply-wooden Box)

Specifications

1800mm Round Material Handling Magnet on Excavator
Material Handling Equipment information:
Excavator Lifter for Steel Scraps

Suitable for cast ingot, steel ball, pig iron, machine chip, for various kinds of steel scraps, return scraps, cropping, baling scraps and etc in foundry factories and for iron powder in coal washery.

During slag disposal process, it can remove large size of iron at initial step. Outlet box has two chambers, an extrathick fender and an anti-twist setting.

There are three excitation options: rated voltage DC220V; strong excitation; over excitation.

Technical Data: (DC-220V, TD-60%)

Specifications		Standard type	high frequency	high temperature
Model		MW5-180L/1	MW5-180L/1-75	MW5-180L/2
Diameter		1800 mm
Dead Weight		4200 kg	4690 kg	4530 kg
Current (cold-state)		105.9 A	73.9 A	95 A
Consumption Power		23.3 kW	16.3 kW	20.9 kW
Lifting capacity	Impact ball	12500 kg
	Pig iron	2750/2100 kg
	Crop-end	2750/2100 kg
	Scraps	1600/1350kg	/	/
	Cast chips	1600/1350 kg	/	/

About Inquiry

To help you get the best magnet for your application, we should have the following information:
1. What are the materials you want to attract?
2. What kind of steel and iron? For example: Steel scraps, steel billet, ingot, plate, bar or ball.
3. What' s the lifting capacity you expect?
4. What kind of working site does the magnet work?
5. Do you want the Cable Reel? If yes, tell me hoist height of the crane.

6. Do you want the electric controller?

7. Kindly provide information of your power information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the lifting capacity).

Quick Response:

Enquries by email, fax or instant message is high appreciated.

Your enquiry will be replyed by email & fax within 24 hours.

Please feel free to call us at any time for any questions or documents wanted.

Pre-sales Service:

All of our technical proposal will be offered by our senior engineers, based on your request.

Full production process will be shown to you by photos & video during manufacturing.

Package & Transportation:

Packed in Plywooden Box, with fixed iron frame.

All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.

After-sales Service:

After sales service and technical support could be offered within guarantee peirod.

Site maintanence could be also provided.
