HD-SDI Digital Fiber Optical Transmitter and Receiver
Product model: X801
Features
HD-SDI/SDI/ASI signal auto recognition, need not select by hand
Compliant with the standards of SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI), SMPTE344M
Compliant with the standard of DVB-ASI(EN50083-9)
Auto adaption to the speed of HDSDI/SDI 143M,177M,270M,360M,540M,1483.5M,1485Mbps, or DVB-ASI
With automatic cable equalization function, compensation for cable transmission loss
Convenient instructions of LED status, data rate, optical link, power supply etc
PCB boards made with environment friendly Pb-free
PCB boards made with multilayer design, to ensure stable and reliable signal transmission
All components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
Enclosure box material is made of aluminum, elegant appearance, light weight
Dual switching power supply design, wide voltage range, reliable long-term running
A variety of installation options: 16-slot rack, particularly suitable for large volume optical transmission platform construction, and also available for 4-slot rack, 2-slot rack and single-slot rack, fixed mini box
Introduction
Xerov X801 digital video fiber optic transmission system can transmit one HD-SDI high definition digital video, or one SD-SDI(143M/177M/270M/360M/540Mbps)standard definition digital video or one DVB-ASI stream through one single mode fiber or multimode fiber with the standards of SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI).
Due to the advanced digital fiber optic transmission technology, almost you need not make any adjustments, simple to set up, easy to operate.

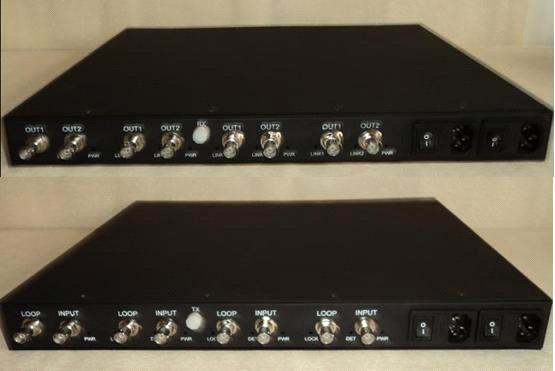

Xerov X801 transmitter provides one HD-SDI input, and one loop-through for local monitoring. The receiver outputs 2-way parallel HD-SDI digital video.
Xerov X801 transmitter equipped with auto-cable equalization circuit, and cable driver circuit available at receiver.
Xerov X801 both at the transmitter and receiver, signal jitter elimination circuit available, to ensure high quality signal transmission over long distance fiber cable.
Xerov X801 3.3V power supply system, low power consumption.
Technical Specifications
|
HD-SDI Input
|
|
|
Signal Standard
|
SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310,
SMPTE305(SDTI), DVB-ASI(EN50083-9)
|
|
Number of Input
|
1 plus 1 loop-through
|
|
Resolution
|
10 Bit
|
|
Signal Level
|
>380mVp-p
|
|
Auto-Cable
Equalization |
>250m(270Mbps)( BELDEN8281 Cable)
>100m(1485Mbps)(BELDEN8281 cable) |
|
Input Return Loss
|
>15dB(1485Mbps)
|
|
Impedance
|
75Ω
|
|
Connector
|
BNC
|
|
HD-SDI Output
|
|
|
Channel Capacity
|
2
|
|
Signal Level
|
800mVp-p±10%
|
|
Rise/Fall time
|
<0.8ns
|
|
HD-SDI Jitter
|
<0.2UI(134ps)@100kHz <1.0UI(673ps)@10Hz
|
|
SDI Jitter
|
<0.2UI(740ps)@10Hz
<0.2UI(740ps)@1kHz |
|
Impedance
|
75Ω
|
|
Connector
|
BNC
|
|
Physical
|
|
|
Dimension(HxWxD, mm)
Mini box |
40×155×178 |
|
Power Supply
|
130 - 260VAC, 50-60Hz
|
|
Power Consumption
|
<10W
|
|
Temperature
|
0 to +70 Degree
|
|
Humidity
|
0 to 95% RH Non-condensing
|
|
LED Status Indicator
|
Power, Optical Link, Video Activity
|
|
Optical
|
|
|
Fiber Type
|
Single mode
|
|
Number of fiber
|
1
|
|
Wavelength
|
1310nm/1550nm
|
|
Distance
|
Up to 100km
|
|
Connector
|
FC/PC
|
