Home >Products Catalog > Sanitation Truck > Compressed Collector Truck -22cbm

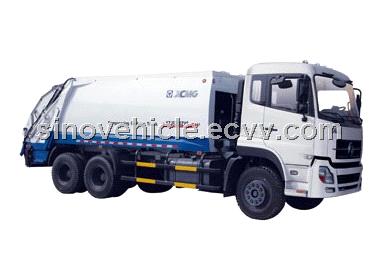

Compressed Collector Truck -22cbm

FOB Price:	21,000.00 - 32,000.00 USD/Set
Supply Ability:	8,000 Set/Sets per Year
Shipping:	RO/RO,bulk carrier
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Waxed or nude packing

Specifications

Compressed collector truck also named as garbage compactor truck, refuse collector truck,rear load garbage truck,refuse compactor truck,compression refuse collector,refuse collector,compressed garbage truck,refuse collection vehicle,rubbish collector used for waste management.

The characteristics of garbage compactor truck:
1. Garbage compactor truck is equipped with China domestic and import brand famous hydraulic cylinders and components;
2. Refuse collector truck is adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation;
3. Italy multi-way valve is optional;
4. The garbage compactor carriage is designed with circular arc with nice appearance,artistic design of exterior, broad advertising space,harmonious collocation of color.

22M3 Compressed Collector Truck

compression garbage truck	Technical Parameter
Dimension (length×width×height)(mm)	9460×2480×3030,3600,3690
Chassis type	Dongfeng DFL1250A8
Engine model	Cummins ISBE245 30 (Europe III)
Curb weight	25000 kg
Rated loading capacity	9585 kg
Wheel base	4350+1300mm
Departure angle	10°
Maximun running speed	90 km/h
Effective body volume	22 m3
Volume of sewage tank	1130 L
Hooper volume	1.3 m³
Ground clearance (unloaded) mm	490
Packing cycle time	23 s
Discharging cycle time	33 s
Maximum crushing force	186 KN
Maximum pushing force	248 KN
Hydraulic working pressure	21 Mpa
