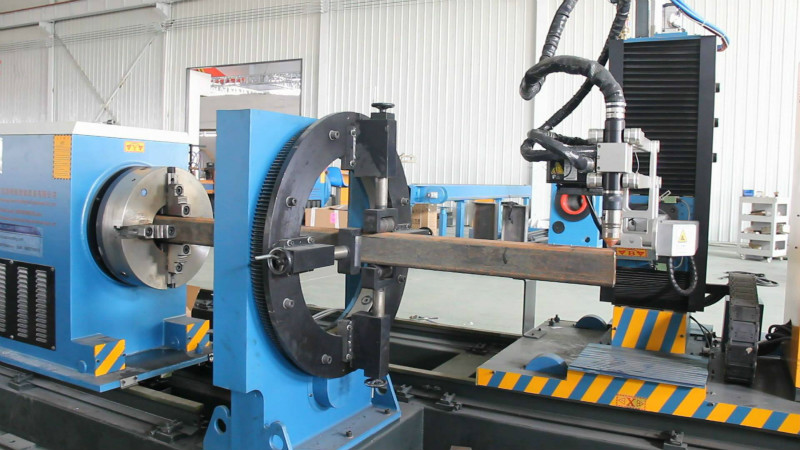

CNC Square Steel Tube Plasma Cutting Machine for Sale
| Supply Ability: | 20 Set(s) per Month |
|---|---|
| Shipping: | 30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard export case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: one year
- Certification: ISO9001,CE
- Brand Name: JEESUN
- Condition: New
- Rated Power: upon actual model
- Voltage: 380V
- Model Number: FG series
- name: cnc square steel tube plasma cutting machine for sale
Specifications
CNC square steel tube plasma cutting machine for sale
Features
1. 3D cutting solutions, can cut rectangular, conical, polygonal fittings and profiles and other three-dimensional cutting tasks.
2. Systems can be customized to special specifications and applications.
3. User-friendly interface design, easy operating, visualized cutting and calibration process, DSTV NC standards included.
4. Large raw materials library is expandable (including GB, JIS, and ASTM).
5. It can cut all types of bevels for welding process.
Technical parameters
Raw material |
Square tube |
Rectangular tube |
Oval tube |
Cutting diameter |
Laser cutting:6mm300mm; Plasma and oxy-fuel cutting:50mm20000m | ||
Pipe length |
500Mm16000mm | ||
Cutting Mode |
Oxy-fuel,Plasma and laserCuting | ||
Cutting thickness |
YAG laser cutting:0.2mm6mm; Fiber Laser cutting:0.2mm10mm; Plasma cutting:0.5mm16mm; Oxy-fuel cutting:6mm60mm | ||
Controlaxes |
2-6 | ||
Plasma beveling angle |
45 | ||
Flame beveling angle |
60 | ||
Axis quantity |
Thickness <10mm non-bevel cutting:4-axis 4 linkage | ||
Nesting software |
Canada KasryPipe nesting software,optional foreign ones | ||
CNC system |
KRXCNC | ||
Driving system |
PanasonicServo system | ||
REducer |
NEWSTART | ||
Other Specifications | |||
Working temperature |
- 10C -45C | ||
Humidity |
<90%, no condensation | ||
Surroundings |
Ventilation, no big shake | ||
Power voltage |
3380V10% or up by user's local condition | ||
Operation language |
English or Chinese | ||
Options | |||
Heating and cooling systems, Programming software Integration dust extraction Auto-Pipe lock system FASTFRAME/FASTPIPE/STCAM | |||
Selection advice: B:6 axis plasma andOxy-fuelCutting for pipes diameter above 10mm Selection advice: B:6 axis plasma andOxy-fuelCutting for pipes diameter above 10mm | |||
