Table Type Low Cost CNC Plasma Cutting Machine 1530 Series with Factory Price
| Supply Ability: | 60 Set(s) per Month |
|---|---|
| Shipping: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard export case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: one year
- Certification: ISO9001,CE
- Brand Name: JEESUN
- Condition: New
- Rated Power: upon actual model
- Voltage: 380V
- Model Number: TS series
- name: table type low cost cnc plasma cutting machine 1530 series with factory price
Specifications

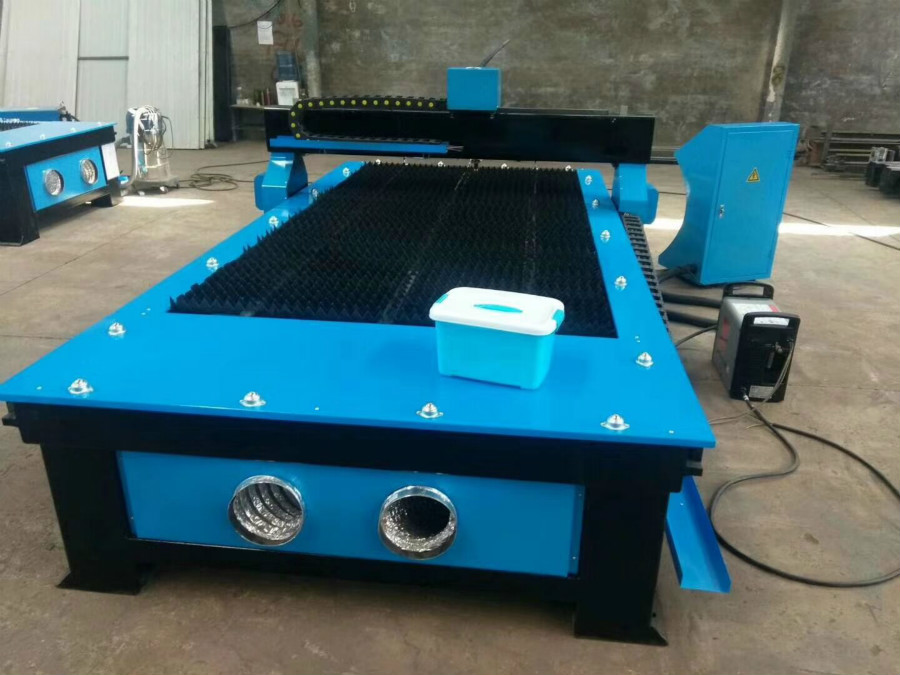

Table type low cost CNC plasma cutting machine 1530 series with factory price
Brief introduction
ThE desktop CNC Plasma and flame Cutting machine is Specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time.THere are 3 kinds of cutting modes provided:plasma cutting and Laser cutting and Flame cutting,different materials,metal,steel,aluminum,copper,etc,can be well cut by it Desktop CNC flame and plasma cutting machine is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Features
1. Low cost semi-dry dust removal process,80% dust Can be removed without disturbing cutting process.
2.Advanced structural design, which is Integrative, compact structure, good rigidity and stable performance.Light structure design for Transversal direction which has Good movement performance,Bilateral synchronous drive system for Longitudinal direction.
3.Imported linear guideS for Longitudinal and transversal transmission, high precision and good guidance.
4.Drive rack, gear manufacturers by professional custom, surface carburization quenching and high accuracy.
5.Servo drive with Panasonic servo drive system with position detection function, exercise high precision, speed, speed range, acceleration time is short.
6.Optional dust or fume treatment working table, create a good working environment.
7.Matching multiple plasma power, for different metal cutting.
Technical parameters
Specifications |
Unit |
TS-1325 |
TS-1530 |
TS-2040 | ||
Cutter System | ||||||
Cutting Length |
mm |
1300*2500 |
1500*3000 |
2000*4000 | ||
Rapid Feed |
Mm /min |
15000 | ||||
Cutting Thickness |
Depends on plasma source. Please contact our sales representative for more information. | |||||
Cutting Speed |
Depends on raw materials. Please contact our sales representative for more information. | |||||
Accuracy | ||||||
Positioning Accuracy |
Mm /m |
0.2 | ||||
Repeatability |
Mm /m |
0.3 | ||||
Empty running speed |
Mm/min |
0-10000 | ||||
Drive system |
AC servo driven | |||||
Nesting software |
Australia Fast CAM | |||||
Control system |
Shanghai jiaoda F2300,Micro EDGE(optional) | |||||
Drive method |
Rack and pinion drive | |||||
