Self-Discharge Belt Type Magnetic Separator

FOB Price:	5,000.00 - 25,000.00 USD/Set
Supply Ability:	25 Set/Sets per Month
Shipping:	25 days after order, CIF any port of China
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	Standard Export Packing (Ply-wooden Box)

Specifications

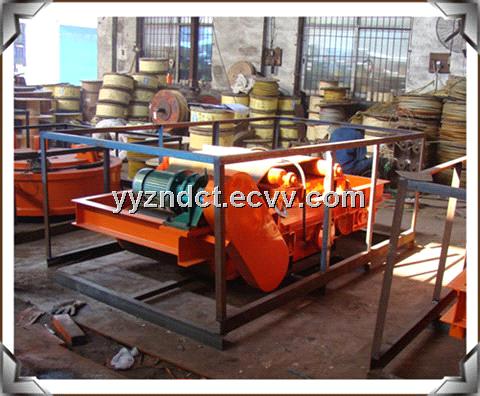

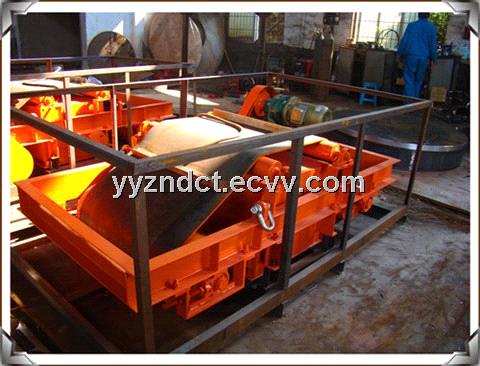

Self-Discharge Suspended Magnetic Separator/Copper Separator

This Magnetic Separator is designed for long term operating shift provided with with self-discharge function and semi-sphere shaped magnetic field. Insalled with continuous operating trump iron discharging conveyor which helps to shrow the attracted magnetic material into the iron collection tray. It is suitable for removing the magnetic iron particles from the thicker bed of the material and material under bigger granuarity such as ores, coals, hard cokes, limestine and etc.

Technical Data:

Model	Erection Height	Belt Width	Voltage	Power	Driven Power	Mass
MC12-5060L	160 mm	400 mm	110V	1.03 kW	1.5 kW	1074 kg
MC12-6070L	180 mm	500 mm	110V	1.4 kW	1.5 kW	1074 kg
MC12-7080L	220 mm	600 mm	110V	1.8 kW	1.5 kW	1330 kg
MC12-8090L	250 mm	650 mm	110V	1.6 kW	2.2 kW	1470 kg
MC12-90105L	250 mm	800 mm	110V	2.9 kW	2.2 kW	2000 kg
MC12-110130L	310 mm	1000 mm	220V	4.2 kW	2.2 kW	2700 kg
MC12-130145L	350 mm	1200 mm	220V	5.8 kW	4 kW	4200 kg
MC12-150175L	410 mm	1400 mm	220V	8.3 kW	4 kW	6020 kg
MC12-165190L	450 mm	1600 mm	220V	9.8 kW	4 kW	8260 kg
MC12-180210L	490 mm	1800 mm	220V	11.6 kW	5.5 kW	7900 kg
MC12-230230L	550 mm	2000 mm	220V	22.5 kW	5.5 kW	15500 kg
MC12-250250L	550 mm	2200 mm	220V	25 kW	7.5 kW	17500 kg

About Inquiry

To help you get the best magnet for your application, we should have the following information:
1. What are the materials you want to attract?
2. What kind of steel and iron? For example: Steel scraps, steel billet, ingot, plate, bar or ball.
3. What kind of working site does the magnet work?

4. Kindly provide information of your power information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the lifting capacity).
