Ceramic Crucible Boat

FOB Price:	1.00 - 200.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	30 DAYS AFTER PAYMENT
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

ceramic pad heater

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	EXPORT CARTON / WOODEN BOX / PALLET

Specifications

Innovacera is a professional manufacturer of technical ceramics.

Innovacera has a complete range of advanced technical ceramics for a wide variety of applications.

Alumina Crucibles are manufactured for more than 20 years and have a skill production technology in different shapes and range of sizes from few milliliters to several liters, these fully dense, high purity an high temperature use, fine grain products find use in a range of high temperature applications such as metal processing / molten glass, rapid thermal cycling, gemstone purification for jewelry industry etc. Majodrity of applications require the ceramic to be impervious, porous forms can also be made on order.

Industrial alumina ceramic crucible is used for testing laboratory and a variety of industrial analysis.

We can supply 99% and 99.5% alumina ceramic crucible and zirocnia ceramic crucibleaccording to customer' s drawings, samples and performance requirement.

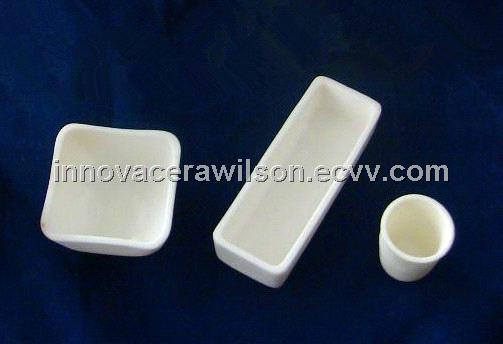

Alumina ceramic crucibles include:

1. Arc alumina crucible

2. Square alumina crucible

3. Rectangle alumina ceramic crucible

4. Column ceramic crucible

5. Other shaped alumina ceramic crucible

Overview of Physical Properties:

1. High chemical etching resistance.

2. High temperature up to 1800° C(Alumina) and 2400° C(Zirconia)

3. Resistant to sudden cold and hot, un-explosive.

4. High density of slip casting.

Size Specifications of Crucibles:

5ml, 10ml, 15m, l20ml, 25ml, 30ml, 50ml, 100ml, 150ml, 200ml- 1500ml and custom-tailor.

Material Specifications& Properties

We can supply the products according to customer' s drawings, samples and performance requirements.

Material	Unit	Al2O3-997	Al2O3-993	Al2O3-850
Items	Unit	Al2O3-997	Al2O3-993	Al2O3-850
Al2O3	%	99.7	99.3	85
SiO2	%	< 0.1	—	—
Density	g/cm3	3.95	3.88	3.2
Water Absorption	%	0	0.01	0.2
Flexural Strength	Mpa	450	350	200
20° C Leakage rate	Torr/L. Sec	< 10-11	< 10-11	< 10-11
High Temperature Curve	mm	1700° C 0.2mm is allowed	1600° C 0.2mm is allowed	1400° C 0.2mm is allowed
High Temperature Bonding		1700° C Not	1700° C Not	1700° C Not
20~1000° C Coefficient of Linear Thermal Expansion	mm. 10-6/° C.M	8.6	8.2	8.2
Thermal Conductivity	W/m. K	25	25	10
Breakdown Voltage	KV/mm	20	20	15
20° C DC Volume Resistivity	Ohm/cm	1014	1014	1014
High Temperature Volume Resistivity	1000° C MΩ	≥ 0.08	≥ 0.08	≥ 0.08
High Temperature Volume Resistivity	1300° C MΩ	≥ 0.02	≥ 0.02	≥ 0.02
1550° C Thermal Shock	—	Did not crack in 6 times cycle at 1550° C	Did not crack in 6 times cycle at 1550° C	Did not crack in 3 times cycle at 1300° C
Limit of Application	° C	1900	1800	1400
Max Manufacturing Length for Tube	mm	1600	1600	1600

We are ISO certified:

ISO9001:2008 ISO14001:2004 OHSAS18001:1999

The constant goal of Innovacera is a superior level of quality and sevice at competitive prices. Particular attention is given to the production of individual customer parts for both large and small runs. We implement a very sophisticated Quality Control process which we have our own customers certify. All parts that pass through our facility are visually and dimensionally inspected as well as calibrated. Our engineering staff is available for counsel and recommendations that will satisfy your ceramic requirements.

Superior quality of products with reliance is our prime consideration.

Feel free to contact us if you need any other assistance about our products.

We care and provide what you want!
