Automobile Sway Bar Link

FOB Price:	20.00 - 22.00 USD/Set
Supply Ability:	10,000 Set/Sets per Quarter
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Suspension Arm Kit (KS555.02)

Price:

Min. Order:2000 Sets
Open Type Blind Rivets With Large Flange

Price:

Min. Order:
Auto Belt

Price:1.00-10.00 USD/Piece

Min. Order:20 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Specifications

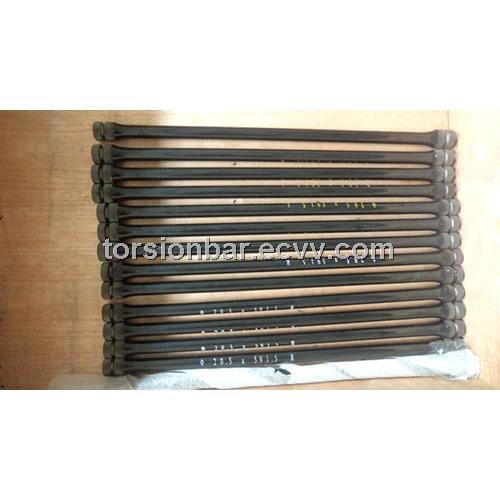

Automobile Sway Bar Link
TORSION BARS

f you want to get the best of smooth and vibration free driving, then certain preventive measures must be taken. Take your vehicle for a periodic check up. This will enhance the performance and efficiency of the engine. This leads to great driving and longer life of your vehicle. Those who wish for a soft ride, long travel can install torsion bars in their cars.

Torsion bar is usually a spring, which returns to its original position when distorted. One end of the torsion bar is fastened to the frame that makes it unable to move during operation. Other end of torsion bar is attached to a pivot. When the force is exerted on the pivot end, it moves and moves the torsion bar along with it.

Torsion bar is one such significant equipment of the vehicle that maintains stability. It is a part of auto suspension, comprises of a bar, which twists to maintain the vehicle’s stability. Torsion bars are also known as sway bars. These sway bars support the components of automobile suspension. Thus, allowing them to move while driving on bouncy roads and resulting in a smooth ride.

Installing torsion bar in the vehicle has several advantages. Firstly, while towing heavy loads it eliminates hard bottoming. Secondly, it enhances vehicle handling on the road. Thirdly, it offers a consistent spring rate. This way a driver gets better vehicle control on lifted and lowered vehicles. Usually, torsion bars are precision machined. That ensures great quality and consistency, along with unmatched reliability. While installing a torsion bar, take care that bars are epoxy powdered coated, which means it has resistance to corrosion.

Basics
A torsion bar is a flexible spring that can be moved about its axis via twisting. Torsion bars are designed and based on the amount of torque used in the twisting of the spring, the angle of the twist, the overall dimensions of the torsion bar and what materials the torsion bar is made from.

The most common place to find a torsion bar is in the suspension of a car or truck, in machines used for production or in other precision devices. The flexibility of the spring is the main reason that a torsion bar is used. If a more rigid structure were used such as a steel rod were used too much load bearing pressure would be placed on the both the wheels and the under body of the vehicle.

How a Torsion Bar Works
A torsion bar works by resisting the torque placed on it. When one end of the torsion bar is affixed to an object that cannot be moved, the other end of the bar is twisted, thus causing torque to build up. When this happens, the torsion bar is resistant to the torque and will quickly go back to its starting position once the torque is removed. In general, the object that cannot be moved is usually a frame. If there is not any force applied to the torsion bar, it will stay at the same position until force is applied.

Practical Example
An example the other end of the bar will be contacted to a control arm. The control arm moves in a fixed manner on the frame and this creates the twisting movement on the bar. This, in turn, supplies the torque needed to make a spring.

Torsion Bar Adjustments
Occasionally, there may be a need to adjust the height of a vehicle. This is done by using the adjuster bolt located at the frame end of the torsion bar. The weight placed on the control arm of the torsion bar in unchanged when this adjustment is made. Once the torsion bar is manipulated in this manner, rides in the vehicle may feel somewhat stiffer. This is due to the new angle of the control arm. It is also a possibility that the adjuster bolts may have been wound too far. This causes a lack of room between the control arm of the vehicle and the upper portion of the torsion bar closest to the under side of the vehicle. After making a change to the height of the torsion bar, it is a good idea to have the alignment of your vehicle checked to make the sure the weight of the vehicle body is properly distributed.

Main Production equipment:

2pcs NIPPEI Centerless Grinder made in japan

4pcs CNC Double Hot extrusion Forging machine

4pcs CNC Roll forming machine

2pcs CNC Double robotic automation control frequency induction hardening equipment

2pcs CNC Flat end machine

8pcs CNC precision lathes

2pcs CNC precision tooth rub machine

4pcs PLC pre-twisting control machine

2pcs PLC Fluorescent magnetic flaw detector

1pc Polishing machine

1 Surface coating automatic production line

Main testing equipment:

1 TCN-10000 CNC torsion testing machine

1 CNC-20000 Fatigue testing machine

1 Computer-controlled optical microscope

2 HR-150 Rockwell Hardness tester

1 Salt Spray Corrosion Test Chambers
