Boshine Industrial Co., Ltd.
China Manufacturer with main products: Speed/Gear Reducer, Electrical Motor, Gear Motor, Helical Gear Units, Worm Gearbox, Bevel Gear Reducer, Cycloid Gear Reducer, Variable Speed... |

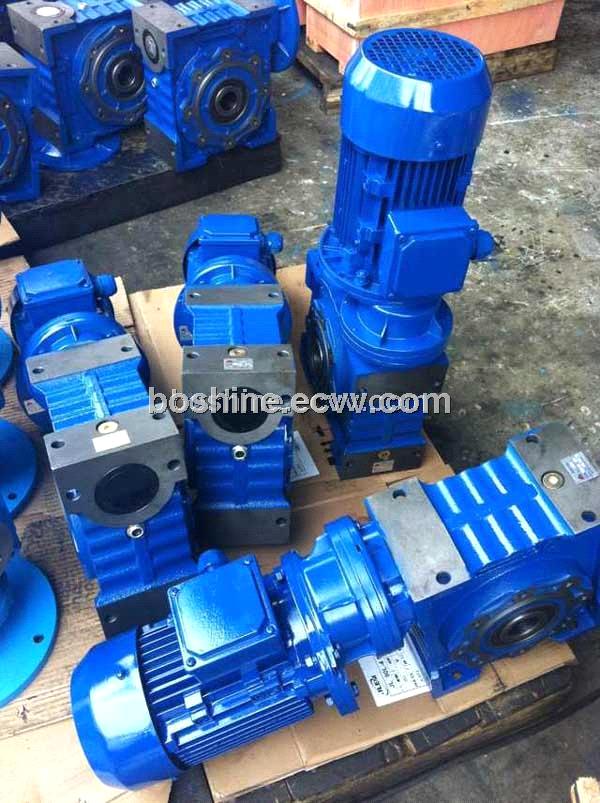

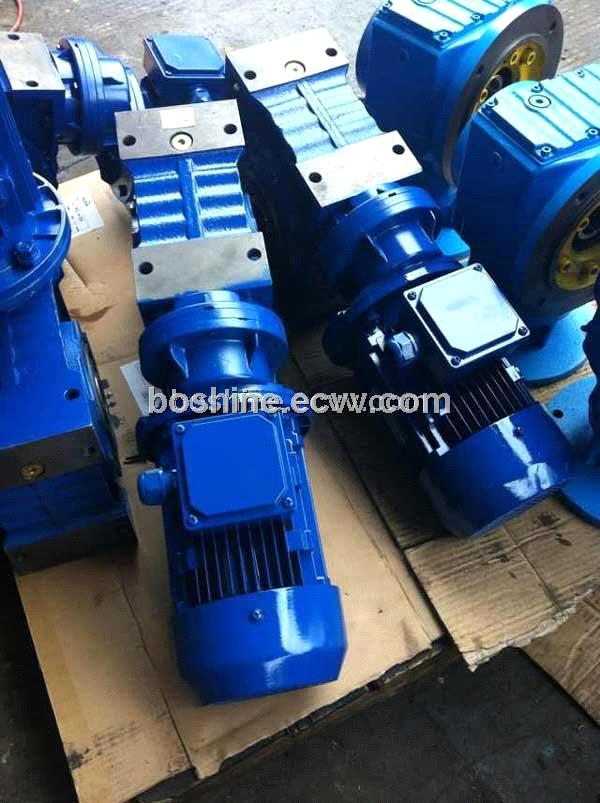

Worm Helical Gearbox Reducer Motor
| Supply Ability: | 1,200 Set/Sets per Month |
|---|---|
| Shipping: | Delivery 5~30 days, Ningbo or Shanghai port. |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Inner:plastic film bag and foam,outer:plywood case. |
Quick Details
- Standard or Nonstandard: Standard
- Tooth Profile: WORM
- Material: Iron
- Processing: Die Casting
- Model Number: RV
- Brand Name: BOSHINE
Specifications
RV+PC Worm Gear Speed Reducer Motor
|
Features of Reducer Motor
|
||
|
Drive Motor
|
Power(P1)
|
Y/Y2 Induction Motor, 0.12Kw~2.2Kw
|
|
Voltage Scope(V)
|
110V~660V or make specially according to clients'requirement.
|
|
|
Phase
|
Single or Three
|
|
|
Pole
|
2 or 4 or 6 or 8 or 10
|
|
|
Motor Speed(N1)
|
Relys on motor pole:600r/min~3000r/min
|
|
|
Frequency
|
50Hz or 60Hz or 50/60Hz
|
|
|
Insulation Class
|
B or F
|
|
|
IP
|
IP54 or IP55 or make specially according to clients' requirement.
|
|
|
Duty
|
S1
|
|
|
Cooling Type
|
IC0141(Fan Self-cooling) or Blower
|
|
|
Terminal Box
|
0o or 90o or 180o or 270o,any position is allowed
|
|
|
Link Wire
|
Y(P1≤3Kw), Δ(P1>3Kw)
|
|
|
Operation Temperature
|
Normally:-15℃~ 40℃.If end-user's special requirement,we'll make it specially.
|
|
|
Connect Method
|
IEC motor adapter
|
|
|
Ratio Scope(i)
|
From 25*3=75 to 100*3=300
|
|
|
Rated Torque(N.m)
|
42N.m~800N.m
|
|
|
Output Speed(N2)
|
Depends on motor pole: N1/ratio(i), N2=1.5r/min~200r/min
|
|
|
Service Factor(Fs)
|
1.0~1.5
|
|
|
Mount Type
|
Solid or hollow output shaft or flange
|
|
|
Installation Direction
|
Horizontal or Vertical is allowed
|
|
|
Installation method, Detailed dimension, Lubrication oil list etc, download pdf file.
|
||
