Specifications

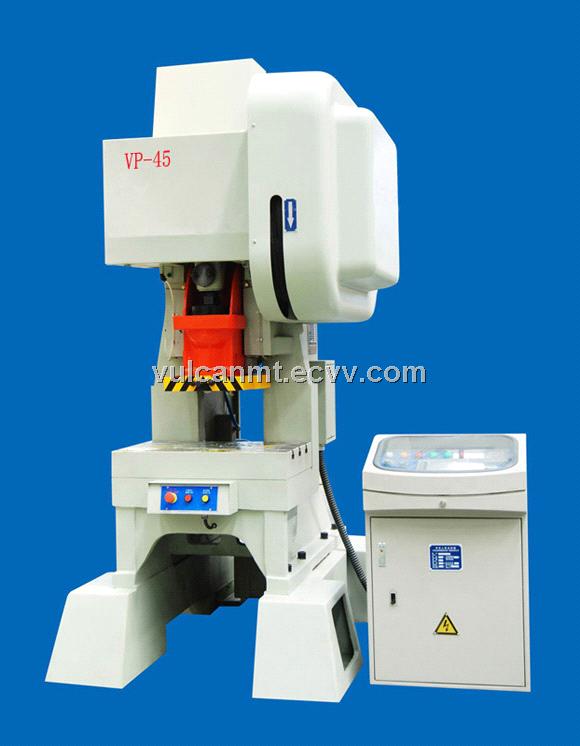

High Speed Press Machine
Features:
Features:
.The Power Press Machine stamping line are suitable for producing hardware, electron, EI sheet, and stator and rotators of motors especially.
.High rigidity alloy frame dealing with thermal aging, which means anti-vibration and little distortion
.Infinite variable speed, touch screen human-machine interface, easy operation
.Imported PLC controller, high reliability
.Low inertia clutch and brake which means engaging smoothly and braking rapidly
.Automatic oil lubrication
.Rolling bearings for crank and pitman
.Super long guided gib and air sac balancer.
Specifications:
|
Item
|
Unit
|
VP-45
|
|||
|
Nominal Pressure
|
kN
|
450
|
|||
|
Nominal Pressure Stroke
|
mm
|
1.6
|
|||
|
Stroke Length
|
mm
|
10
|
20
|
30
|
|
|
No. of Strokes per minute
|
SPM
|
150-550
|
150-500
|
150-450
|
|
|
Max. Die Height
|
mm
|
265
|
260
|
255
|
|
|
Throat Depth
|
mm
|
235
|
|||
|
Die Height Adjustment
|
mm
|
50
|
|||
|
Bolster Surface
|
F.B.
|
mm
|
450
|
||
|
L.R.
|
mm
|
540
|
|||
|
Bed Opening
|
F.B.
|
mm
|
120
|
||
|
L.R.
|
mm
|
300
|
|||
|
Slide Surface
|
F.B.
|
mm
|
290
|
||
|
L.R.
|
mm
|
340
|
|||
|
Stem hole
|
mm
|
￠50×75
|
|||
|
Distance between Uprights
|
mm
|
300
|
|||
|
Thickness of Bolster
|
mm
|
110
|
|||
|
Main Motor
|
Power
|
kW
|
5.5
|
||
|
Overall Dimension
|
F.B.
|
mm
|
1620
|
||
|
L.R.
|
mm
|
1353
|
|||
|
Height
|
mm
|
2471
|
|||
|
Air Pressure
|
MPa
|
0.55
|
|||
|
Gross Weight
|
Kg
|
4200
|
|||
