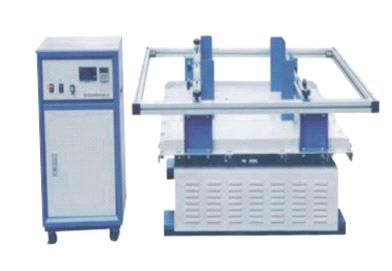

Motor transport simulation shack table

Inquiry Now

Related products from verified members

MF23 hi speed mini hydraulic motors

Price:2,500.00-3,500.00 USD/Piece

Min. Order:1 Piece
YC series heavy-duty single-phase motors

Price:

Min. Order:1 Set
Motor Protector

Price:

Min. Order:
RY series 250V 10A thermal cutoffs for venmar m...

Price:0.13-0.15 USD/Piece

Min. Order:50,000 Pieces
JUKI 2050(2060) Z MOTOR for Pick & Place Ma...

Price:400.00-500.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Introductions:

Electrical and electronic products of transportation package vibration test, especially for production of household electrical appliances enterprise more and more concern, this test is mainly used for evaluation package in the sine vibration or resonance case of strength and packing internal loading content protection ability this simulating transportation test in the laboratory can timely found the products structure errors, so that through the improvement design makes the products reach users' hands, won't because after transportation and make the performance change.

Features:

1) Vibration frequency digital display, high precision

2) Synchronous mute broadband transmission, low noise

3) Sample clamp the rail type, convenient operation safety

4) Heavy steel channel base with damping rubber, easy installation, load is strong, smooth operation

5) According to the Europe and the restructuring of similar equipment, rotary vibration, accord with Europe and the United States transportation specification

6) Suitable for toys, electronics, furniture, gifts, ceramics, package transportation to the product packaging testing

Specifications:

Ø Max test load: 100KG

Ø Frequency range: 100~300r/min

Ø Vibration amplitude range: 25.4mm

Ø Vibration direction: Rotation way

Ø Simulation speed: 24~40km/h

Ø Setting time range: 0.01s ~ 99.99h

Ø Working table size: 1200*1000mm (L*W)

Ø Net weight: 180kg

Ø Power supply: 220V/50Hz
