coal slurry dryer for sale
| Supply Ability: | 100 Set/Sets per Year |
|---|---|
| Shipping: | within 30 days after deposits |
| Payment Terms: | L/C, T/T, D/P |
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | standard |
Specifications

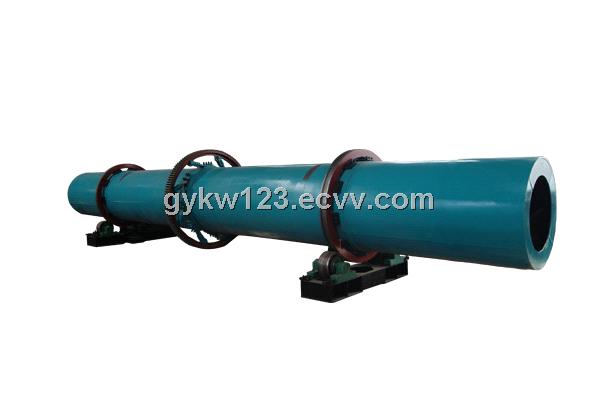

Coal slurry dryer is the new type private slurry drying equipment developed on the basis of rotary drum dryer.
Coal slurry dryer consists of heat source, beater device, belt loading machine, feeding machine, rotary roller, belt discharger, draft fan, discharger, and switch board.
1. The dryer is of strong overload capacity resistance, large process load, low fuel consumption, and low cost.
2. It adopts direct flow drying method. The gas fume and the material go to the dryer from the same side. By using the hyperthermia gas fume, the evaporation strength is very high. With the low outlet temperature, the heat efficiency is very high.
3. The operating parameter can be changed according to different materials. So that the material can form a stable fabric curtain and achieve fully heat exchange.
4. The new type feeding and discharging device solve the problem of feeding jam, discontinuous and uneven feeding, and returning charge which lighten the load of dedusting system.
5. The new inner structure strengthens the cleaning and heat conduction of the dispersed material, and eliminates the bonding in the inner drum wall. The adaptability to the material moisture and stickiness is stronger.
6. The zero level thrust of the dryer reduces the abrasion to the catch wheel and the riding wheel. The operation of the rotary drum is stable and reliable.
7. The dryer adopts the riding wheel device, which make the riding wheel and the rolling ring linear touch all the time. Thus the abrasive and the power loss are greatly reduced.
8. The granularity and the moisture and be controlled by the customer demand. When drying the coal slurry, the product moisture can be less than 8% and the granularity and be less than 8mm
| Equipment specification (mm) | Processing capacity (t/h) | Motor power (kw) | Into material moisture (%) | Coal demand ((kcal/kg) | Discharge water (%) |
| Φ1500x16000 | 3-5 | 15 | 80±5 | ≥5000 | ≤20 |
| Φ1800x18000 | 5-7 | 18.5 | 80±5 | ≥5000 | ≤20 |
| Φ2000x20000 | 7-10 | 22 | 80±5 | ≥5000 | ≤20 |
| Φ2400x20000 | 12-15 | 37 | 80±5 | ≥5000 | ≤20 |
| Φ2700x20000 | 20-25 | 75 | 80±5 | ≥5000 | ≤20 |
