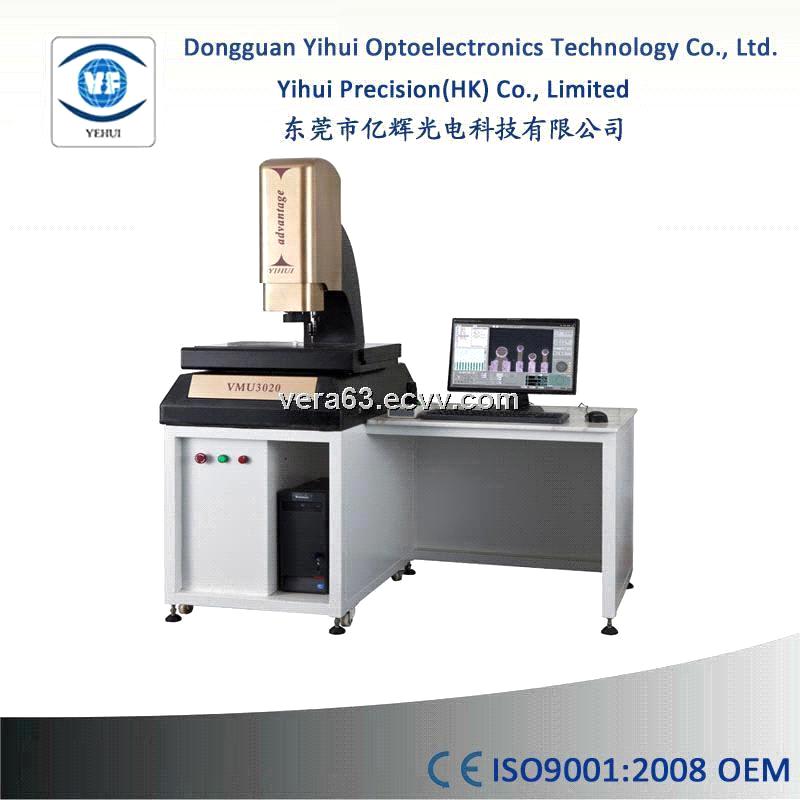

Latest CMM Measuring Instrument VMU3020
| FOB Price: | 41,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | FOB shenzhen, CIF. Delivery within 7 working days after the 30% prepayment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Vacuum package and free fumigtion wooden case |
Specifications
Latest CMM Measuring Instrument
Usage:
Usage:
1. Adopt Germany SB double closed-loop motion control, motor with precise positioning performance in high-speed movement.
2. Using Japan COOMUSK servo control motor, not only increasing motor speed, but also simplifies the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable to connect.
3. With granite platform ,newest stand column and worktable, look simple and generous.
4. Surface light formed by 40 groups independent light source, each group is constant current source driver and 200-step continuous variable.
5. With our company-specific CNC measuring software has greatly enhanced the efficiency measurement.
Feature:
1. It's designed to do three-dimensional work piece on the slope, round, bad ditch, columns, ball, dimension, three-dimensional measurements such as blind holes as well as the distance between the elements, angle and other geometrical terms.
2. Coupled with our company's self-developed 3D optical measurement software to achieve rapid detection, at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
3. Measurement data and graphics can be directly converted to Word, Excel and AutoCAD to made statement.
Specification:
|
Model
|
VMU3020
|
VMU4030
|
VMU5030
|
||||||
|
Worktable
|
Work table’s size(mm)
|
600*390
|
700*490
|
800*490
|
|||||
|
Glass table’s size(mm)
|
350*250
|
450*350
|
550*350
|
||||||
|
X,Y Travle(mm)
|
300*200
|
400*300
|
500*300
|
||||||
|
Z-axis travel lift(mm)
|
200(Focus)
|
200(Focus)
|
200(Focus)
|
||||||
|
X.Y.Z-axis digital display resolution
|
0.5um
|
0.5um
|
0.5um
|
||||||
|
X.Y coordinates indicating value error
|
≤(1.5+L/200)
|
||||||||
|
Instrument Weight (kg)
|
330
|
450
|
500
|
||||||
|
Dimension (mm)
|
620*840*1020
|
720*1040*1020
|
800*1040*1020
|
||||||
|
Motor
|
Three-axis velocity
|
200mm/s
|
|||||||
|
Three-axis positioning accuracy
|
0.001mm
|
||||||||
|
Imaging System
|
Camera
|
U.S. TEO Color 1 / 2 "CCD Camera
|
|||||||
|
Zoom lens
|
U.S. NAVITAR coaxial optical zoom lens with a zoom lens (2 select one)
|
||||||||
|
Zoom lens magnification
|
0.7-4.5X
|
||||||||
|
Video Total magnification
|
20-128X
|
||||||||
|
Object field
|
11.1-1.7mm
|
||||||||
|
Power
|
AC220V/AC110V
|
||||||||
|
Power consumption
|
100W
|
||||||||
|
Instrument Accessories
|
1X Tube (standard)
|
0.5X Tube (optional)
|
WD
|
||||||
|
Zoom lens
|
0.7-4.5X
|
0.7-4.5X
|
|
||||||
|
Add Mirror
|
video magnification
|
object field
|
video magnification
|
object field
|
|||||
|
0.5X(option)
|
10X-64X
|
22-3.4
|
5X-32X
|
44-6.8
|
175
|
||||
|
1.0X(standard)
|
20X-128X
|
11.1-1.7X
|
10X-64X
|
22-3.4
|
92
|
||||
|
2.0X(option)
|
40X-256X
|
5.5-0.9
|
20X-128X
|
11.1-1.7
|
36
|
||||
Guarantee: 12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
1) If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
2) But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.
4. Extra warranty period: We will take phone to user after-sale advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.
