IEC60068-2-75 Spring Hammer Calibration Device

FOB Price:	1,000.00 - 8,000.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	express, air or sea
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden case

Quick Details

Usage: Impact Testing Machine
Power: Electronic
Model Number: CX-TF06
Brand Name: Chuangxin

Specifications

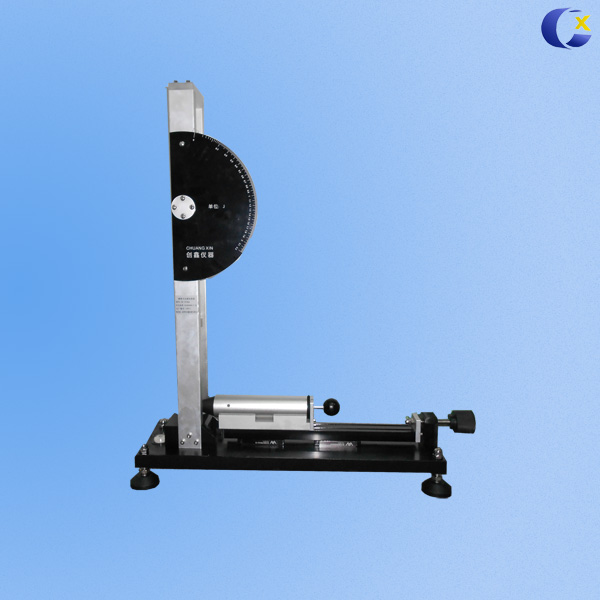

Spring Impact Hammer Calibration Device IEC60068-2-75

Spring Impact Hammer Calibration Device IEC60068-2-75 is mainly used for the calibration of the hammer spring, which is based on IEC60068-2-75-1997 and GB2423.55-2006 standard design and manufacturing, primarily for third-party testing organization, the National immigration department and appliance-related research institutes.
It is stictly designed and manufactured according to IEC60068-2-75-1997 and GB2423.55-2006 standard.
Features:

Spring hammer calibration device is based on all parts IEC60068-2-75 Appendix B requirements of normative documents tolerance manufacturing, most of the critical parts using special materials and special processing, accuracy and stability in the superior performance
Single-weight design, and supports the vast majority of domestic and foreign manufacturers of all calibration hammer spring, for the company to meet the German PTL 2J spring hammer calibration need extra special guide groove.
Technical parameters:

Main parameters	CX-TF06	Similar products
The actual accuracy	0.01J	0.02J
Repeat accuracy	±0.01J	0.02-0.04J.
Maximum range	0-2J	0.1-2J
Guide groove diameter	51mm	51mm
Pendulum Energy Loss	<0.002j	<0.008J
Trigger Route	>30mm	<18mm
Weight	1pcs	2pcs
