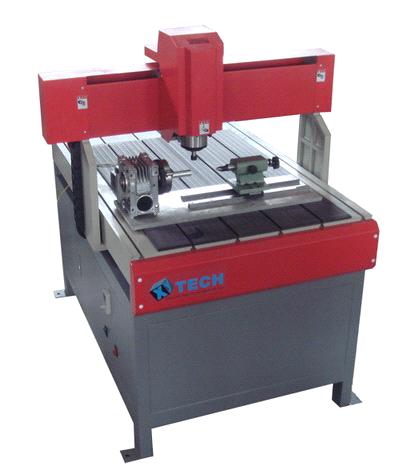

XJ6090 Stone & Metal Processing CNC Router

FOB Price:	2,000.00 - 3,800.00 USD/Set
Supply Ability:	300 Set/Sets per Month
Shipping:	the delivery time is 7-10 days
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

CNC router XB-1530

Price:4,230.00-45,317.00 USD/Piece

Min. Order:1 Piece
D7090A Advertising CNC Router

Price:

Min. Order:1 Set
Best Small CNC Router Machine AOL6090

Price:2,100.00-3,500.00 USD/Set

Min. Order:1 Set
Advertisement CNC Router

Price:

Min. Order:
ISO30 Toolholder Forks ATC Tool Grippers For Wo...

Price:20.00 USD/Piece

Min. Order:50 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	export wooden case

Specifications

XJ6090 Stone & Metal Processing CNC Router

1. Technical Parameters

Model	XJ6090
X-Y-Z axis working area	60090080mm
Machine size	900x1300mm
Resolutions	0.025mm
X-Y movement	Rack and pinion,gear drive/Taiwan(ball screw)
Z movement	Ball screw drive
Guide	Linear square/Taiwan(PMI or HIWIN)
Max.speed	15,000mm/min
Max.cutting speed	10,000mm/min
Spindle	1.5kw/2.2kw/water cooled(Optional Italy HSD air cooled)
Spindle speed	24,000rpm
Inverter power	1.5kw/2.2kw
Drive motors	Stepper(optional Japan servo)
Working voltage	AC220V/380v 50-60HZ,

2.Features

>The Lathe bed is one-piece cast Iron and will never warp.

>Two-motor drive system ensures quick, even, stable operation

>The vacuum cleaning system offers a clean working environment and better quality

>High performance Subdivision stepper motor operates smoothly at maximum speed.

>Highly accurate gears allow for engraving characters as small as 1.5mm

>The unique calculating system realizes speedy, accurate, curvy operation

>Large Water-cooled High-Frequency High-Power Motor features low noise, constant speed, and long operational life

>12 Month Warranty on parts and Labour

3.application

1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.

2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.

3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.

4.Optional Parts

1.Dust Collecting System

2.Vacuum Table with Air Pump (For XJ1224,1325) 3.

3. Mist Sprayer and flume

4.Rotary device with Dia80mm/100mm/200mm

5.DSP System w/Portable Control Pad (128MB)

Accessories:12pcs of Cutters, Collets,Control Card. Spanner x 3, Brush, Double sided tape, Power cord, USB data cable

User-friendly English manual and vedio CD for machine using and maintaining
