>Products Catalog > Pump Products > 24V Solar Brushless DC Mini Car Pump DC40C-2450 Low noise Absolute safety For humidifier Aquarium

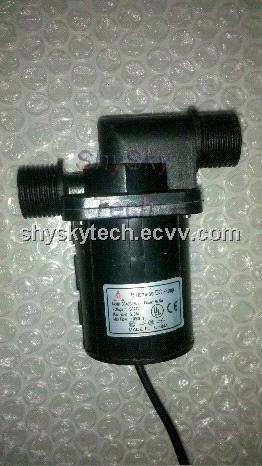

24V Solar Brushless DC Mini Car Pump DC40C-2450 Low noise Absolute safety For humidifier Aquarium
| FOB Price: | 18.53 - 25.67 USD/Piece |
|---|---|
| Shipping: | Can be negotiated |
| Payment Terms: | L/C, T/T, D/A, D/P, Paypal, Western Union, Can be negotiated |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Specifications
24V DC CPU Cooling CAR Brushless Water Pump Long life Low consumption maintenance-free For humidifier Air conditioner Aquarium
This is a high-quality made DC solar submersible pump
Built by a brushless motor so that quieter and last longer than a non-brushless pump, plus, it will not generate electric spark like the non-brushless pump does, so it's safer, can be used to pump oil (inflammable fluid)
Super long working lifespan (more than 30,000 hours), maintenance-free
Small size, low consumption, low noise(less than 35db)
Submersible and entirely waterproof, easy to install and use
Can be used to pump water, oil, acid and alkali solution
Variety of power supplies: solar panel, DC electric source and battery
For Pump, Water plays three roles: 1, the medium being pumped; 2, coolant of pump;3, lubricant of pump.
Brushless, permanent magnetic rotor, maintenance-free, long life
Small size, high efficiency, low consumption, low noise,long life
Stator and circuit board sealed by epoxy resin, completely water proof
Parameter adjustable, 24v pump’s head can be adjusted from 1.5m to 4.5m
Can be fixed on the vessel wall with sucking disk
Sizes and weight:86mmx82mmx48mm; 300g
Dimension of Inlet and Outlet: 20mm / 20mm
Power Saving: 26.4W
Low Noise: Less than 35dB
Wide Working Voltage Range: 5-24Vdc (24Vdc rated)
Max Static Head: 4.5m (14.6ft)
Max Flow Rate: 18L/Min (4.76G/Min)
Fluids: Water, oil, gasoline, acid and alkali solution, etc
Power Supply: can be battery, DC electric source or solar panel, etc
Super Long Life: >3years, can be continuously working, without maintenance
Water Proof Class: IP68 (Fit for submersible installation)
1. Make sure the working voltage, current, head and flow. The Max head means the static head. The pump can lift to the max heightwhen there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph).
2. Make sure the dimension(threaded interface or not, the direction and diameter of outlet and inlet).
3. Working environment(temperature and medium).
4. Other functional requirements, such as time control, motion control, pressure control, flow control, and speed adjustment.
1. Working at rated voltage. The positive pole isred wire, the negative pole is black wire.
2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside water installation, you should make sure it is installed blow the liquid surface)
3. When blocking, long-running is not allowed.
4. Preventing any hard particles entering the pumps.
