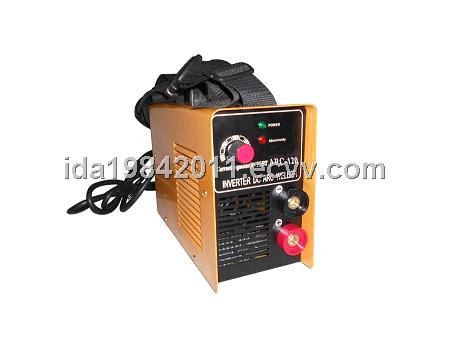

Inverter MMA IGBT Welder(ARC-120)

Shipping:	by sea or air
Payment Terms:	T/T, Western Union

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	carton box

Specifications

Model	ARC-120

Input power voltage(V)	1-220±10%
Efficiency(%)	87
Power factor(%)	0.9
Rated input power capacity(KVA)	3.7
Max No-load voltage(V)	68
Output current adjustment range (A)	20-120
Suitable diameter of rod(mm)	1.6-3.2
Rated duty cycle(%)(40℃,10min)	30
Insulation class	F
Protection class	IP21
Weight(Kg)	3.8
Dimensions (mm)	273x115x180
