Morn Group Limited
China Manufacturer with main products: CNC Router, Laser Engraving and Cutting Machine, CNC Machine, Electronic Heater, Scissor Lift, Articulated Lift, Hydraulic Lift |
CNC Milling Machine
| FOB Price: | 1.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 80 Set/Sets per Month |
| Shipping: | 30 working days after T/T payment |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | veneer case |
Quick Details
- Condition: New
- Brand Name: MORN
- Model Number: MTDX500
- Weight: 2000KG
- Certification: CE
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Application: CNC milling machine
Specifications

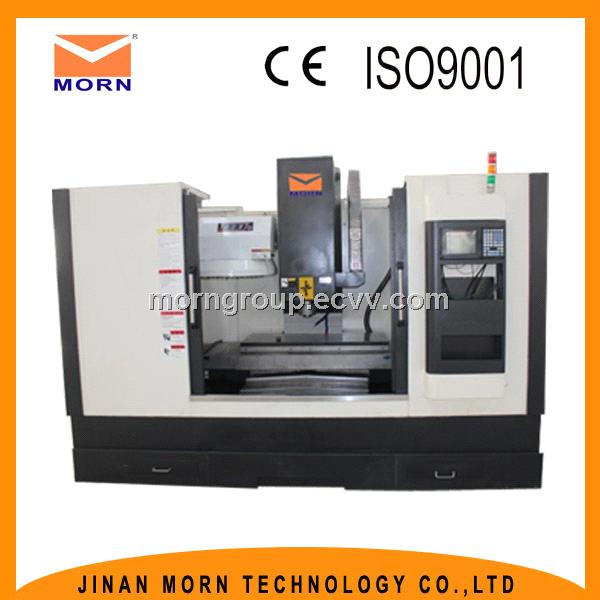

CNC milling machine
Machine main features
1. Wellcompatibility: MasterCAM/Cimatron/Artcam/UG/Type3/Powermi11/Pro/E/CAD/CAM etc. it adopts international standard G code, easy to learn and use.
2. The spindle for engraving and milling, quick speed, high efficiency and smooth surface.
3. Adopt high precision gapless ball screws, bearing heavy linear orbit, working steadily, high control precision, and small vibration. It can guarantee the machine processing well, high speed, low noise, long life, wear proof and durable in use.
4. With the import reliable numerical control system, fast processing, stabilized performance.
5. High power spindle cut and rough with fast speed, surface deformation is small, the bottom is smooth contour clear, strong cutting is freely.
6. Strong cooling protection system, made the spindle durable in use.
7. Many kinds of processing file can be transfer, RS232/USB/network transmission etc.
8. Widely use: die steel, copper and aluminum etc. quick speed and high efficiency. it is the good assistant of the processing industry
Parameters:
|
ITEM
|
|
MTDX500
|
MTDX750
|
|
Work Table area
|
|
500*500
|
800*600
|
|
T-slot
|
mm
|
5-12*85
|
3-12*175
|
|
Max.loading
|
Kg
|
300
|
500
|
|
X Y Z axis travel
|
mm
|
500*400*250
|
600*750*320
|
|
Spindle nose to worktable
|
mm
|
140-390
|
150-470
|
|
Spindle center to column slide ways
|
mm
|
700
|
670
|
|
Splndle taper
|
|
ER25
|
ER25
|
|
Splndle diameter
|
mm
|
110
|
125
|
|
Splndle speed
|
rpm
|
18000
|
18000
|
|
3 axes cutting feedrate
|
mm/min
|
1-12000
|
1-12000
|
|
3 axes rapid feedrate
|
m/min
|
24/24/24
|
16/16/16
|
|
Positioning precision
|
mm
|
±0.003/300
|
±0.003/300
|
|
Repeat positioning
|
mm
|
±0.0025
|
±0.0025
|
More information, please contact us directly.
