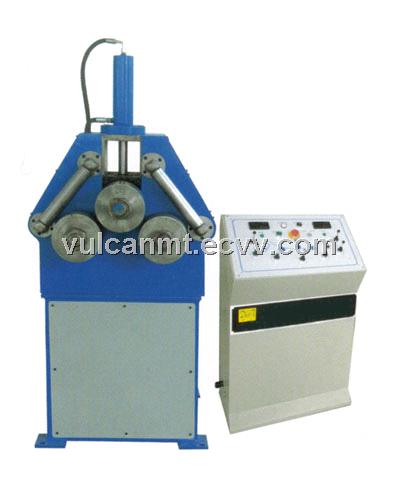

Semi-hydraulic Profile Bending Machine

Inquiry Now Start Order

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Specifications

Semi-hydraulic Profile Bending Machine
Specifications of Angle Bending Machine:

Specifications		WVY24
Specifications		6	16	30	45	75	100
Max anti-bending cross-section muold		6	16	30	45	75	100
Working speed (m/min)		6				5
Yield limit (mpa)		σs =245
	Max cross-section mm	40x5	70x8	80x8	90x10	100x10	120x12
	Max bending dia mm	800	1000	1200	1500	2000	2500
	Min cross-section mm	20x3	30x3	35x3	36x5	38x4	40x5
	Min bending dia mm	400	550	560	600	600	720
	Max cross-section mm	50x5	80x8	90x10	100x10	120x12	140x16
	Max bending dia mm	800	1000	1100	1300	1600	1800
	Min cross-section mm	20x3	30x3	35x3	36x5	38x4	45x5
	Min bending dia mm	400	550	500	600	700	760
	Material designation mm	8	12	16	20	25	28
	Min bending dia mm	600	800	800	1000	1100	1700
	Material designation mm	8	12	16	20	25	28
	Min bending dia mm	700	900	1000	1150	1600	1700
	Max cross-section mm	100x18	150x25	180x25	200x30	220x40	250x40
	Min bending dia mm	600	700	800	900	1000	1200
	Max cross-section mm	50x12	75x16	90x20	100x25	110x40	120x40
	Min bending dia mm	500	760	800	1000	1100	1300
	Max cross-section mm	42x4	76x4.5	89x5	89x8	114x5	159x5
	Min bending dia mm	500	750	900	900	1200	2000
	Max cross-section mm	38	52	62	75	85	90
	Min bending dia mm	450	600	600	800	1000	1100
	Max cross-section mm	45x3	60x4	70x4	80x6	90x8	100x10
	Min bending dia mm	750	900	1000	1200	1600	2000

Specifications		WVY24
Specifications		140	180	260	320	400	500
Max anti-bending cross-section muold		140	180	260	320	400	500
Working speed (m/min)		5	4
Yield limit (mpa)		σs =245
	Max cross-section mm	140x16	150x16	160x16	180x14	200x18	200x20
	Max bending dia mm	2400	2600	2600	3600	3600	4000
	Min cross-section mm	50x5	50x6	60x6	70x6	75x6	85x6
	Min bending dia mm	1000	1200	1200	1500	1400	1600
	Max cross-section mm	150x16	160x16	180x14	200x18	200x24	250x25
	Max bending dia mm	2200	2000	2500	3600	3600	4000
	Min cross-section mm	50x5	50x6	60x6	70x6	75x6	85x6
	Min bending dia mm	800	1000	1000	1300	1500	1600
	Material designation mm	30	32	36	40	45	50
	Min bending dia mm	1200	1500	1800	2000	2000	2400
	Material designation mm	30	32	36	40	45	50
	Min bending dia mm	1700	1800	1800	2000	2000	2400
	Max cross-section mm	280x50	300x50	330x50	360x60	400x75	500x76
	Min bending dia mm	1300	1500	1900	2000	2400	2400
	Max cross-section mm	150x40	180x30	190x40	190x50	200x50	200x60
	Min bending dia mm	1500	2000	2000	2400	2200	2500
	Max cross-section mm	168x6	168x8	219x8	245x8	273x8	323x10
	Min bending dia mm	2000	2000	3500	3000	3500	4200
	Max cross-section mm	100	110	120	135	150	160
	Min bending dia mm	1200	1300	1350	1800	2000	2000
	Max cross-section mm	125x10	140x10	150x10	165x10	180x12	200x12
	Min bending dia mm	2500	3000	3000	3500	3500	5000
