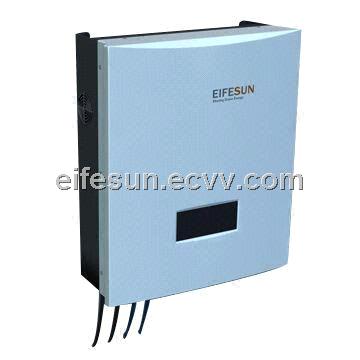

String Inverter-EPV15KTP-TL

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

KEY FEATURES:

(1)Effective IGBT module

(2) Optimal MPPT auto-tracking technology

(3)uitable for applications under harsh power grid conditions

(4) Multilingual LCD, easy to operate

(5) With three-level design, efficiency will be higher

(6) Wide range MPPT, convenient for module configuration

(7) Integrated multi-communication interfaces, easy to monitor

(8) Accurate calculation of output power and more precise power energy computation

(9) Protection for overvoltage, islanding, short circuit, overload, overheating, etc.

(10) Friendly interface, easy to install and maintain

Inverter Model	EPV15KTP-TL
Input (DC)
Max. PV power [W]	17300
Max. DC power [W]	15600
Max. DC voltage [V]	1000
Max. input current [A]	A:20 / B:20
Number of MPP trackers /strings per MPP tracker	2/2
MPPT voltage range(at rated power) [V]	380~800
Shutdown voltage /Start voltage [V]	200 / 250
Output (AC)
AC nominal power [W]	15000
Max. AC power [W]	15000
Max. AC current [A]	24
Nominal AC voltage [V]	3 / N / PE,230 / 400
AC grid frequency / range [Hz]	50
Power factor (cosφ), adjustable	0.9 leading … 0.9 lagging
Total harmonic distortion (THDi)(at nominal power)	<3%
Efficiency
Max. Efficiency	97.90%
Euro-efficiency	97.70%
MPPT efficiency	99.90%
General data
Weight [kg]	50
Operating temperature range [°C]	-20~+60 (derating at 45°C)
Ingress protection	IP65
Topology	Transformerless
Internal consumption(night) [W]	<5
Cooling concept	Fan
Noise (typical) [dB]	<56
Communication port	RS485(standard); RS232/ USB/ Ethernet / CAN
Standard warranty [year]	5
Grid management	Yes
DC switch	Integrated
Inverter Model	EST15KTP-TL
