Bi-Metal Band Saw Blade (27MM X 0.9MM)

Specifications

M42 Band Saw Blade

M42 Bi-metal band saw blade

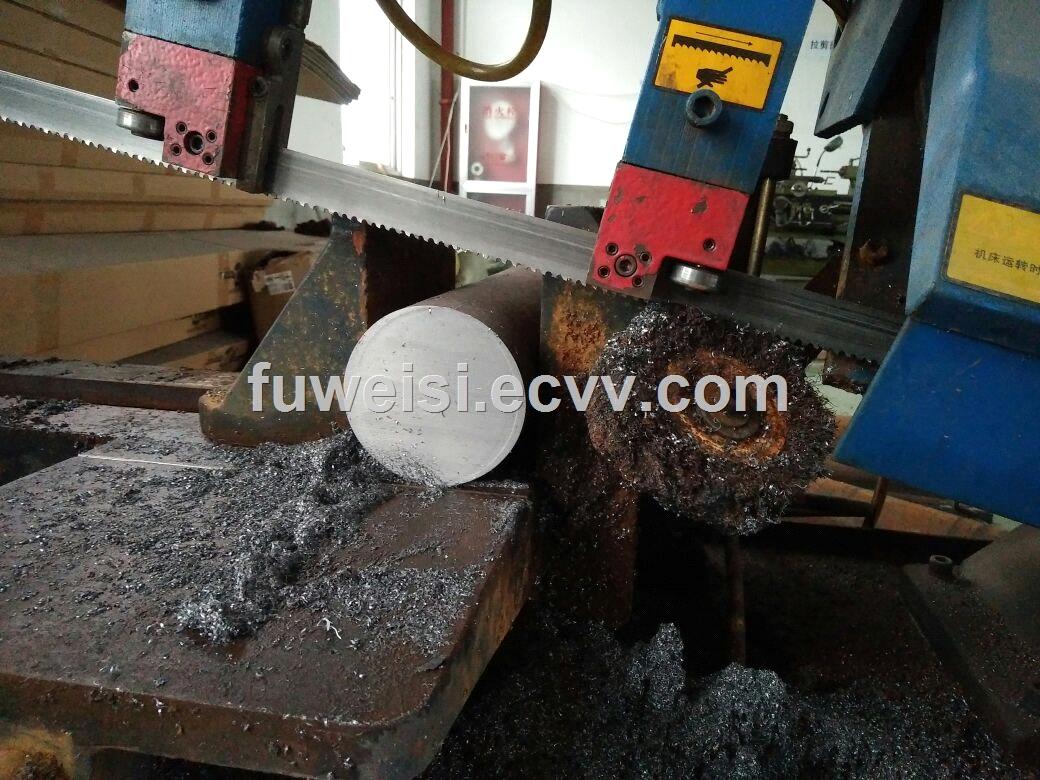

FUWEISI brand Bi-metal band saw blade is made of imported Germany M42 tooth material and backing spring steel material. HRC of blade could be reached to 67-69. this special band saw blade is used for cutting beams, pipes and profiles. And the special tooth geometry is resistant againist vibrations and heavy irregular mechanical strain arising with the metioned applications.
Standard delivery table.

the heating process treatment like all other steps in our production system, are daily monitored by our lab technicians in the metallography dept this gurantees that all our band saw blades match the previously defined quality standards. Our
Research and development team assure a steady evolution of the processes in order to obtain the best quality performance during all phases.

Size                                      TPI
19 x 0.9mm           2/3, 3/4, 4/6, 5/8, 6/10, 8/12.
27 x 0.90mm         2/3: 3/4; 4/6; 5/8;6/10:8/12;10/14.
34 x 1.10mm         2/3; 3/4; 4/6; 5/8;6/10:8/12;10/14.
41 x 1.30mm         2/3; 3/4; 4/6; 5/8.; 6/10:8/12;10/14.

Special size and TPI can also be produced upon request.

Technology information:

1. M42 high speed steel material is from Germany and France.
2. Backing material is from UK and Germany.
3. Welding for blades is done by laser welding machine from Germany.
4. Our band saw blades production line was introduced from Germany.
