Diboride Zirconium Composite Ceramic Sensor
| FOB Price: | 7,000.00 - 9,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | 60 days after down payment received |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Standard export plywood box |
Specifications

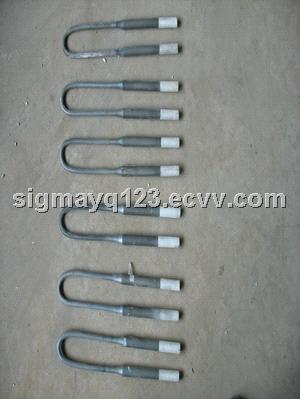

Diboride zirconium composite ceramic heating element for 2600C furnace
SGM.HE16-490B
Detailed Product Description
1.Main ingredients:zirconium diboride
2.Max. temperature is 2600deg.C
3.Can reach 1900C within 120 minutes
4.Patent product.
Products purpose
It mainly used for the heating elements of high temperature box resistance, tube furnace, vacuum furnace, hot-pressing furnace, sintering furnace, etc. It can work under oxidizing atmosphere, vacuum condition, inert gas conditions and reducing condition.
Major element and performance
|
Zirconium diboride composite ceramic heating element is a kind of composite ceramic materials which with zirconium diboride for main ingredients. |
|
|
Melting point of Zirconium diboride
|
3040°C, black solid
|
|
Density
|
5.8g/m3
|
|
Resistivity
|
5.6×10-5Ω.m solid
|
Technology Features
|
Maximum surface temperature under oxidation atmosphere
|
2050°C
|
|
long-term working temperature range under oxidation atmosphere
|
100-1900°C
|
|
Maximum surface temperature under vacuum, inert gas and reducing conditions |
2600°C
|
|
Long-term working temperature vacuum, inert gas and reducing conditions
|
2200°C
|
|
Heating-rate fast speed, it can reach 1900°C within 120 minutes.
|
|
|
With good resistance to heat shock effect, can be applied for the thermal shock resistance test of ultra-high temperature material. The heating element is stable and reliable, long service life and lower maintenance costs. |
|
|
Strong anti-corrosion resistance, it can work under poor conditions
|
|
|
Small power, easy to install.
|
|
|
Model
|
Zirconium diboride composite ceramic heating element size
|
||||
|
Total length
|
Cold size (mm)
|
Hot size (mm)
|
|||
|
DiamaterΦ
|
Length
|
DiamateΦ
|
Length
|
||
|
HE16-490B
|
490
|
16
|
185
|
10
|
120
|
|
HE18-520B
|
520
|
18
|
185
|
10
|
150
|
|
HE20-560B
|
560
|
20
|
200
|
12
|
180
|
|
HE20-600B
|
600
|
20
|
200
|
12
|
200
|
|
HE24-750B
|
750
|
25
|
240
|
16
|
250
|
|
HE30-860B
|
860
|
30
|
280
|
18
|
300
|
