Henan Amity Industry Co., Ltd.
China Manufacturer with main products: Electric Wire, Power Cable, Enameled Wire, Galvanized Steel Wire |
XLPE insulated high voltage cable
| FOB Price: | 100.00 USD/Meter |
|---|---|
| Supply Ability: | 5,000 Kilometer per Quarter |
| Shipping: | 15 days for the trial order |
| Payment Terms: | L/C, T/T, D/P, Paypal, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | export standard drum |
Specifications

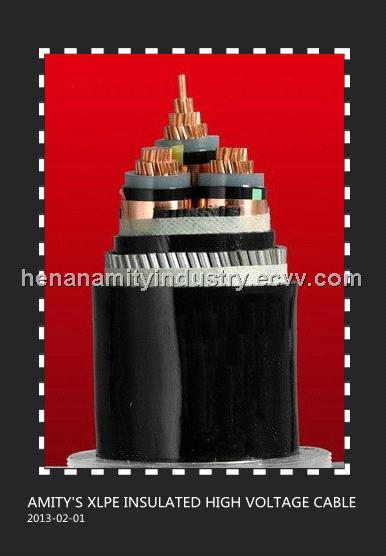

XLPE INSULATED HIGH VOLTAGE CABLE
We mainly supply kinds of XLPE insulated high voltage cable(3.6/6kv to 110kv) with required certificate and competitive price.
We mainly supply kinds of XLPE insulated high voltage cable(3.6/6kv to 110kv) with required certificate and competitive price.
For XLPE insulated power cable ,either chemical method or physical method is employer to transform the molecular structure of PE form chain into three-dimensional network, i.e. thermoplastic PE is transformer into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent property are still retained.
The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which is higher than that of paper, PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal ,mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Standard
The product is manufactured according to the standard of GB12706 or IEC,BS,DIN and ICEA upon request.
Applications
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/kV-26/35kV
Operating characteristics
1, Rated power-frequency voltage Uo/U : 3.6/kV-26/35kV
2,Max.permissible continuous operating temperature of conductor: 90
3,Max.short-circuit temperature of conductor shall not exceed 250.(5s maximum duration ).
4,The ambient temperature under installation should not below 0
5, The bending radius of a single-core cable should not less than 20 times of the cable diameter. The bending radius of a three-core cable should not less than 15 times of the cable diameter.
Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used , and is expressed in the form of Uo/U (Um)KV .Where :
Uo-The rated power-frequency voltage between conductor and earth or metallic scieen ,for which the cable designed;
U-The rated power-frequency voltage between conductors, for which the cable designed;
Um-The maximum value of the highest system voltagefor which the equipment may be used.
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
