Jinan Shanglong International Trade Co., Ltd.
China Manufacturer with main products: Howo Dump Truck, Tractor, Cargo Truck, Truck Crane, All Terrain Crane, Mounted Crane, Wheel Loader, Light-Duty Truck |

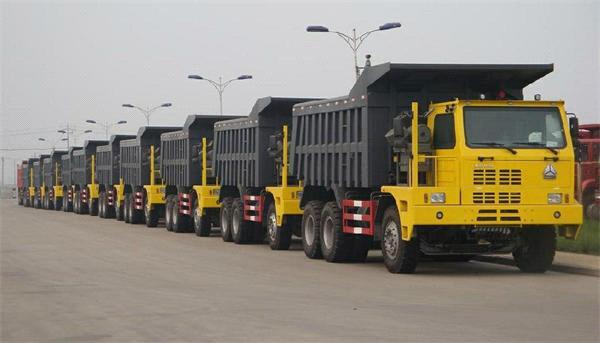

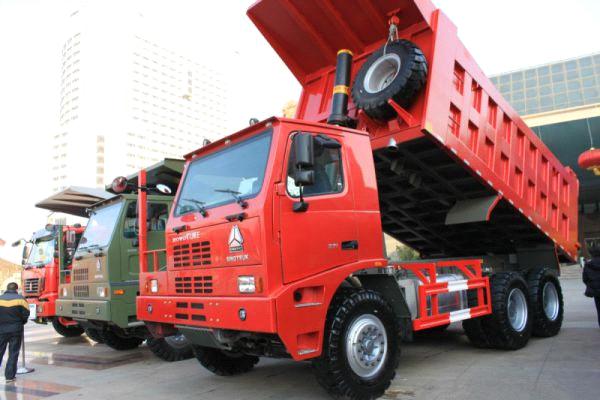

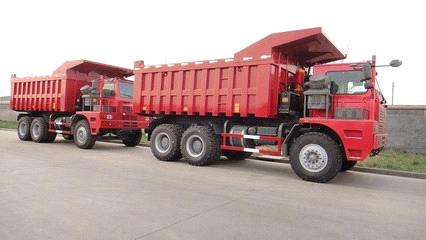

Sinotruk Howo 70Ton Mining Tipper Dump Truck
| FOB Price: | /Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30-40 DAYS |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | NUDE PACKING |
Quick Details
- Drive Wheel: 6x4
- Capacity (Load): 51 - 60t
- Horsepower: 351 - 450hp
- Condition: New
- Transmission Type: Manual
- Emission Standard: Euro 2
- Fuel Type: Diesel
- Engine Capacity: > 8L
- Gross Vehicle Weight: 60000
- Brand Name: SINOTRUK HOWO
- Model Number: ZZ5707V3640CJ
- Dimensions (L x W x H) (mm): 8300x3300x4340
Specifications
1)HOWO Mine Overlord is a heavy-duty mining self-dumping truck produced based on CNHTC Mine Overlord for various open pits, steel works, water and power supply construction sites and harbors, braving poor roads and harsh working environment for short distance transport, especially suitable for mining and rock excavation.
2)The chassis features in high strength skeleton cover, single side cab, high-power diesel engine and low temperature heating device convenient for starting and cab heating in winter.
Model
ZZ5707V3640CJ
Engine
Make: SINOTRUK
Engine model: D12.42-20, Euro II emission standard
Max Power: 420hp
Max torque: 1350Nm at 1100~1600 rpm
Displacement: 9.726L;
Engine oil filling quantity: 23L
Clutch
Single- plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Transmission
HW19710,10 series
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle
Steering with double T-cross section
Rear Axles
Casted axle housing, central single reduction with planetary wheel reduction (hub reduction), and differential locks between wheels and axles
Chassis
Front suspension: 10 semi-elliptic leaf springs
Rear suspension: 12 semi-elliptic leaf springs
Fuel tank: with 500 L
Steering
ZF8098 Ratio: 22.2-26.2:1
Brakes
Option: ABS
Wheel & Types
Types 14.00-25 tube (Option: 14.00R25)
Electrics
Operating voltage: 24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 3-phrase, 28V, 1500W; Batteries: 2x12, 180Ah
Dimensions in mm
Wheel base
3600+1500
Front wheel track
2741
Rear wheel track
2520
Front overhang
1500
Rear overhang
1000
Approach angle(o)
32
Departure angle(o)
40
Overall Dimension
8300x3300x4340
Cargo body size
5500x3100x1800
Steel thickness of Carriage:
Floor: 16mm, Side: 14mm
Weight in kg
Permissible loading capacity on chassis
70000
Dead weight
29000
Gross vehicle weight
70000
Front axle loading capacity
12000
Rear axle loading capacity
29000x2
Performance
Max driving speed(km/h)
50
Max grade ability (%)
42
Min ground clearance(mm)
340
Min turning circle(m)
22
Fuel consumption(L/100km)
31
4)The cab shield is in streamline design effectively protecting the cab for safety. The whole vehicle is rational in structure and high in impact resilience. Hova172 system is known for high lifting power, stable and reliable.
